Astromania Telescope Photo Adapter, 1.25 Inch Fixed Camera Adapter Metal Telescope Accessories for Either Prime-Focus or Eyepiece-Projection Astrophotography Extended Cylinder for Astronomy Telescopes
This camera adapter provides a secure connection between your SLR camera and your telescope.
The advantages in a nutshell: • Very simple to use, also ideal for beginners.

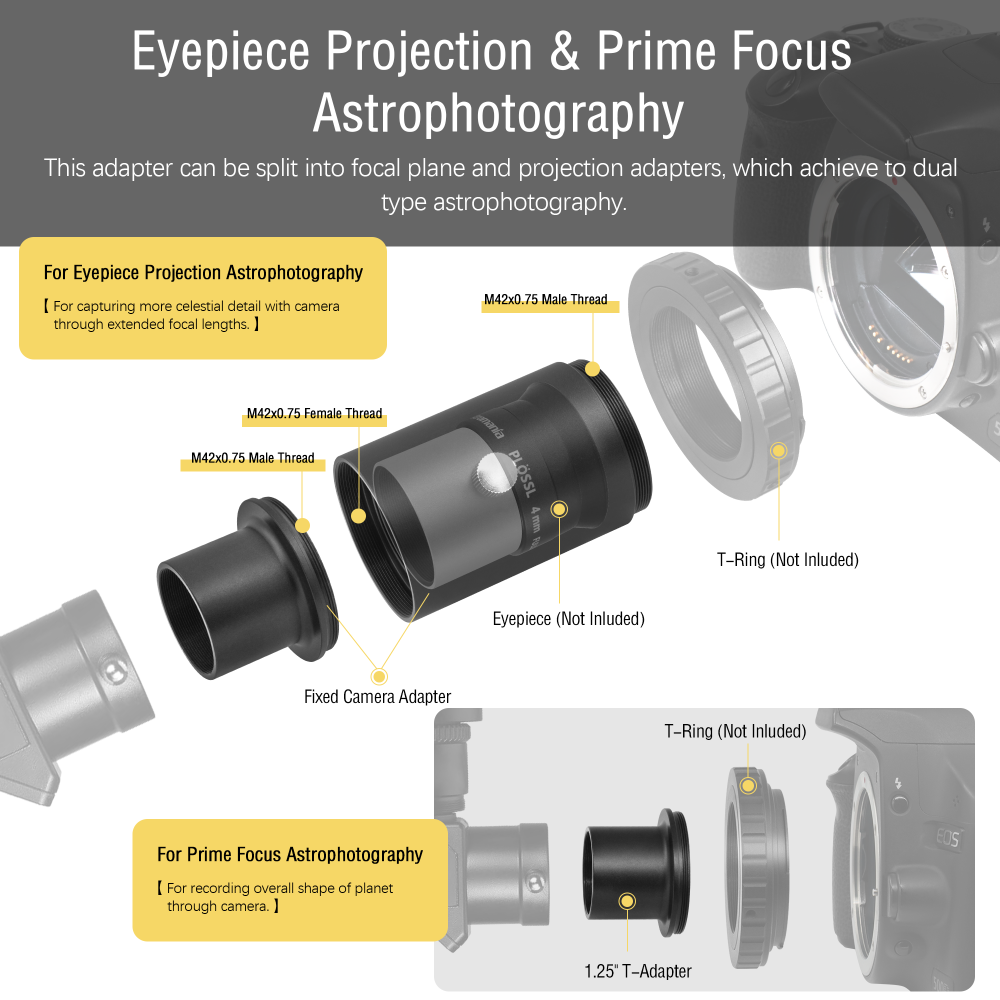

• The adapter can be split into focal plane and projection adapters.
• Compactly Built
• Each segment has its own T-2 thread. Type one : SLR + T-Ring + 1.25" T-Adapter + Telescope Type two : SLR + T-Ring + 1.25" T-Adapter + Zen-ith Mirror + Telescope Type three : SLR + T-Ring + 1.25" Fixed Camera Adapter + Telescope Type four : SLR + T-Ring + 1.25" Fixed Camera Adapter + Zen-ith Mirror + Telescope
Practical function

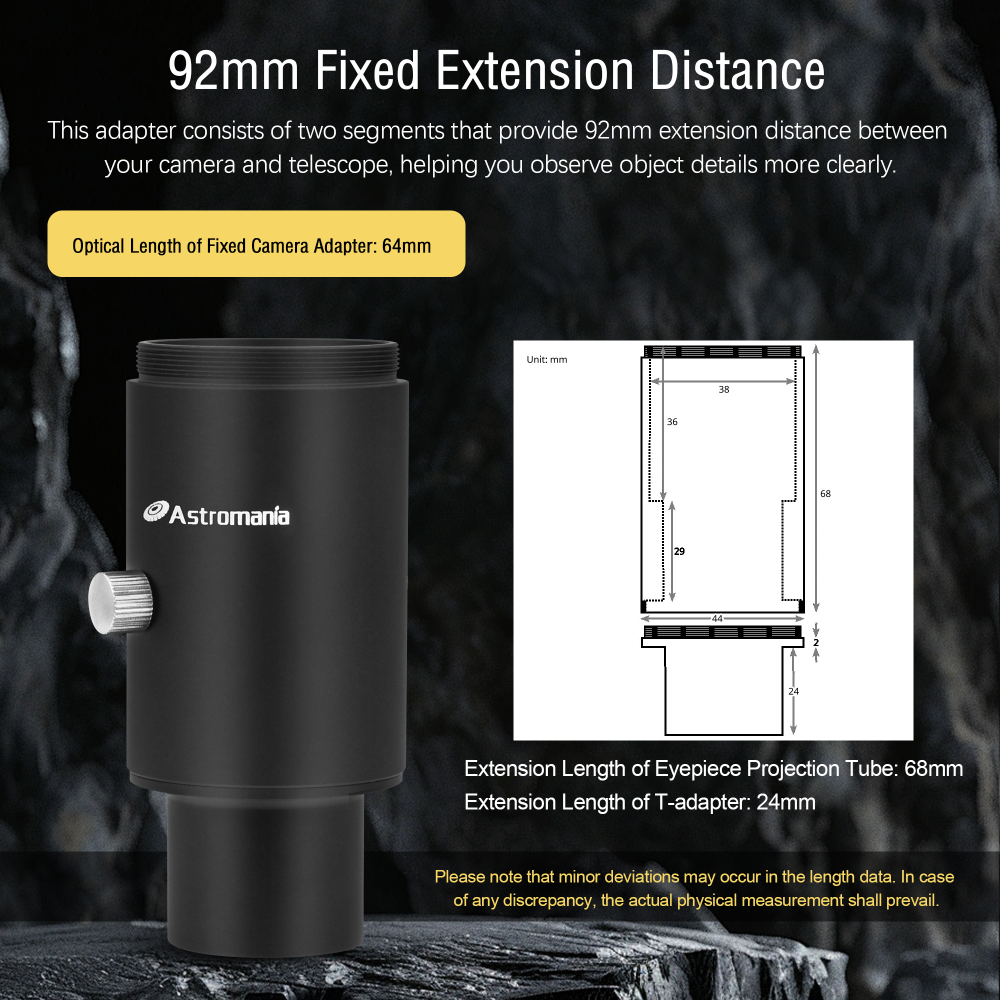

The First Segment of The Adapter: • The smaller front segment is connected to the telescope side via a 1.25” connection. On the rear side you will find a T-2 thread. This focal adapter can be used for the moon, sun and DSOs, for example. You can directly attach a T-2 ring to it. This adaptor has been made to be very short and only uses about 9mm of the optical path. The 1.25” connecting piece has a length of 25mm.

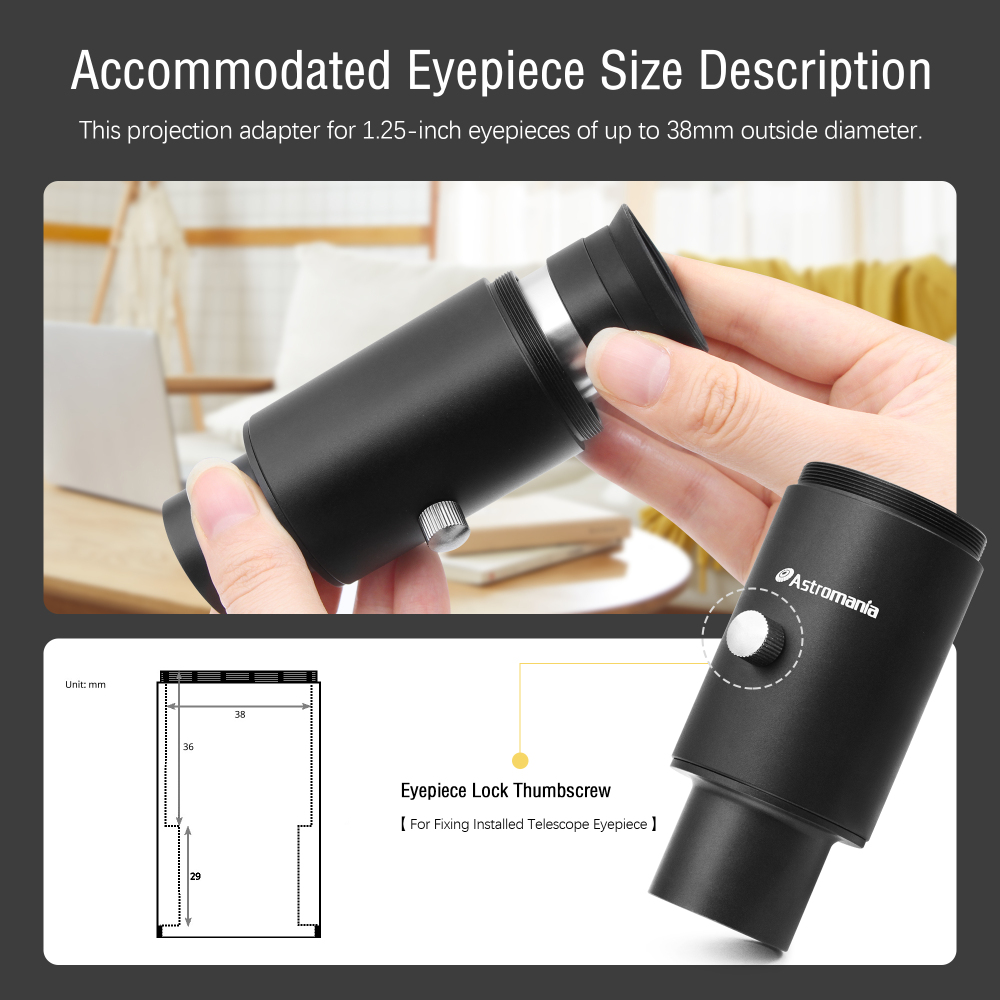

The Second Segment of The Adapter: • The second segment of the adapter is substantially longer and is used for eyepiece projection. It can be used for imaging planets, individual moon craters or sunspots. The inside tube can take 1.25” eyepieces with an outside diameter of up to 38mm. The eyepiece can be locked in place via a knurled screw on the side. This segment has a length of 62mm.
A Versatile Adapter: • Here is a versatile adapter that can be used for prime focus and fixed eyepiece projection photography with your telescope.
• You can use the complete adapter for fixed eyepiece projection photography. Just insert the 1.25" barrel of the adapter into your diagonal or telescope, and then insert an appropriate eyepiece into the upper barrel. Your camera can then be positioned to shoot the magnified image created by the eyepiece.
Product Highlights

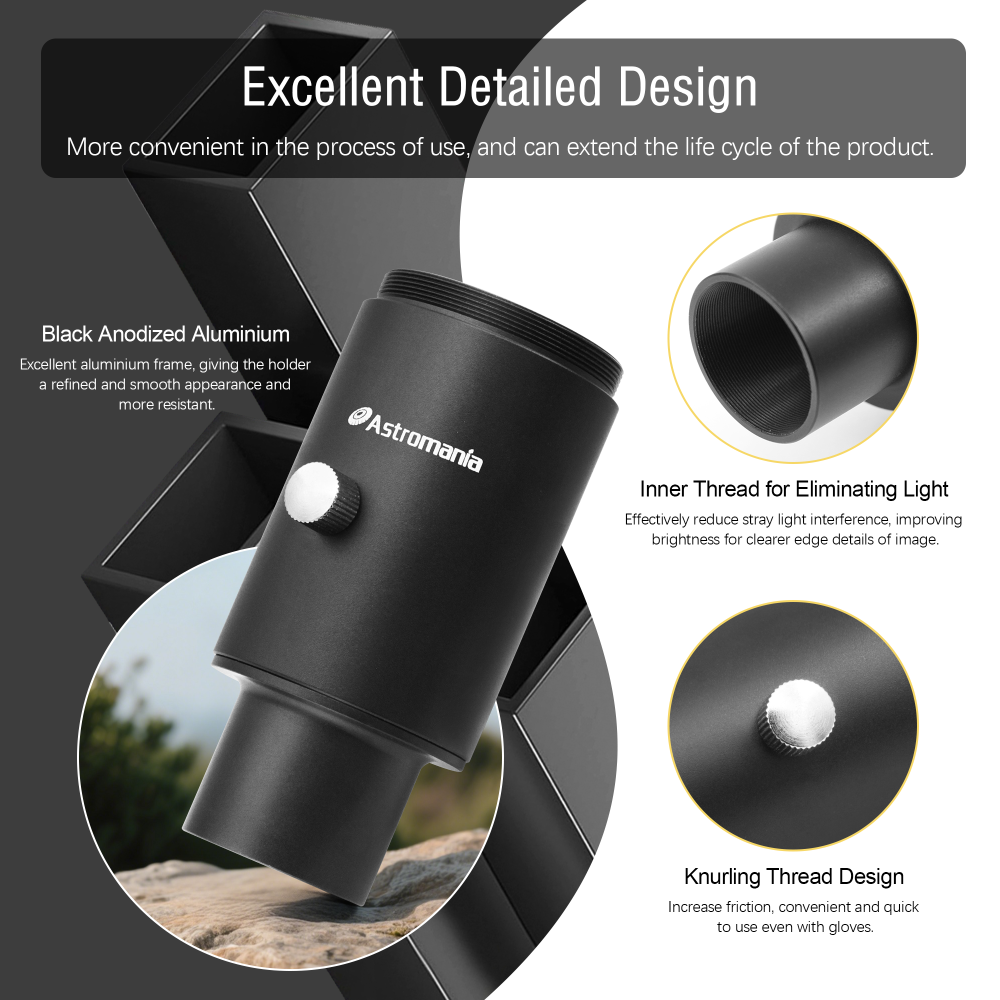

1. Aluminium Alloy Material - All metal construction and anodizing aluminium process, durable for long time use. 2. Lightweight - High-quality aluminum material makes the product lighter and easier to carry. 3. Internal Threaded Design - The design of the internal thread can eliminate stray light and reflected light, and makes the captured image clearer.
Package Includes: 1 x 1.25" T-Adapter
1 x Extension Tube
1 x Eyepiece Holder Thumbscrew
NOTE: The item is not including T-Ring, the T-Ring you may buy:
* T-Ring for Canon: T2-Canon Adapter
* T-Ring for Nikon: T2-Nikon Adapter
* T-Ring for Sony: T2-AF Adapter
* T-Ring for Mirrorless Camera: Mirrorless Camera Adapter
Can be used with • Astromania 1.25" 20mm 66-degree Ultra Wide Angle Eyepiece • Astromania 1.25" 20mm Super Plossl Telescope Eyepiece • Astromania 1.25" 26mm Super Plossl Telescope Eyepiece • Astromania 1.25" 20mm Plossl Telescope Eyepiece • Astromania 1.25" 25mm Plossl Telescope Eyepiece
1.25" Fixed Camera Adapter
1.25" Extendable Camera Adapter
2" Variable Universal Camera Adapter
Deluxe Tele Extender
Fixed Length Extension
✓
✓
Variable Length Extension
✓
✓
Aluminum Alloy
✓
✓
✓
✓
This Standard Universal Camera Adapter is precision made of black-anodized aluminum and is compatible with 1.25" telescope focusers.
Compatible for both reflector and refractor telescopes with 1.25" eyepiece holders.
Useful for either prime-focus or eyepiece-projection astrophotography with refractors or reflector telescopes.

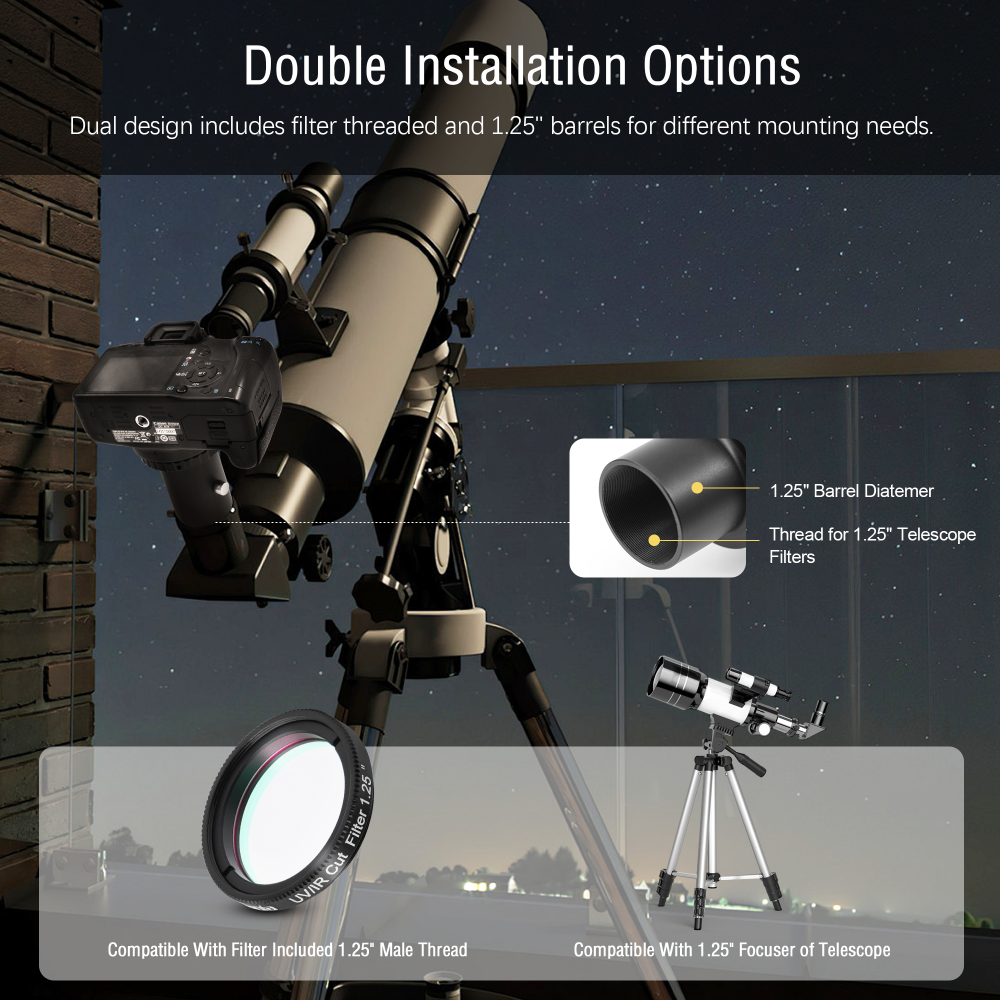

Lets you attach a T-ring equipped DSLR or SLR camera directly to your telescope. The barrel of the adapter is threaded for 1.25" filters.
Accepts 1.25" eyepiece inside for eyepiece projection astrophotography. Projection adapter for 1.25-inch eyepieces of up to 38mm outside diameter.
