Astromania 2" field flattener - Provides perfect image flatness for your astronomy photos

SKU: SKU_AM_FFTER2
5.0 (9 Reviews)
$311.99 $220.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
$215.99
3-9
$213.99
10-29
$210.99
30-49
$207.99
50
    Please select the information you want X
  • Ships From:
    China
    The United States
Quantity
-
+
1 * $220.99 = $220.99
  • Astromania 2" field flattener - Provides perfect image flatness for your astronomy photos
  • Astromania 2" field flattener - Provides perfect image flatness for your astronomy photos
  • Astromania 2" field flattener - Provides perfect image flatness for your astronomy photos
  • Astromania 2" field flattener - Provides perfect image flatness for your astronomy photos
  • Astromania 2" field flattener - Provides perfect image flatness for your astronomy photos
  • Astromania 2" field flattener - Provides perfect image flatness for your astronomy photos
  • Astromania 2" field flattener - Provides perfect image flatness for your astronomy photos
  • Astromania 2" field flattener - Provides perfect image flatness for your astronomy photos
  • Description
  • Specification

Astromania 2" field flattener - Provides perfect image flatness for your astronomy photos

Many refractors and reflector telescopes suffer from field curvature. A curved image field means that stars at the edge of the field of view no longer appear as pin-sharp points but as out of focus discs. But now the new Astromania field flattener will conjure astronomy photos with pin-sharp stars right out to the outer edge of the image field.

Bringing the problem under control
Field curvature is a common optical defect that is not noticeable with visual observing or photography using small chips. If, however, you use a large chip or a full-frame camera, then this defect becomes glaringly obvious. Of course you could always crop your images to remove the blurred outer region; but using a field flattener it is much more elegant solution for using your expensive camera with its large format chip.



Flat field over the entire field of view
The field flattener gives you an absolutely flat image over the entire photographic field of view. Also, the focal length remains the same when using the flattener.


Suitable for telescopes from f4 to f8
You can use the Astromania field flattener with any refractor with a focal ratio between f4 and f8.



Product description:

M48 thread for better aperture illumination

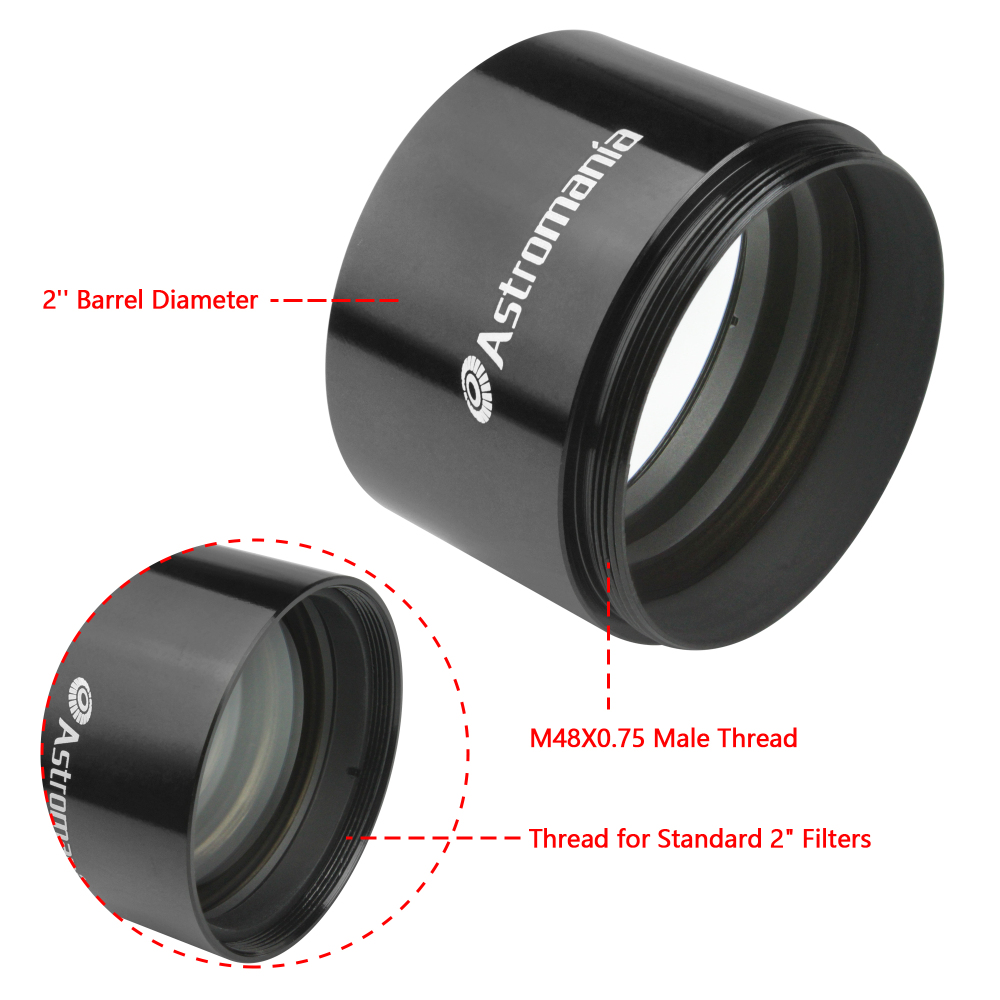

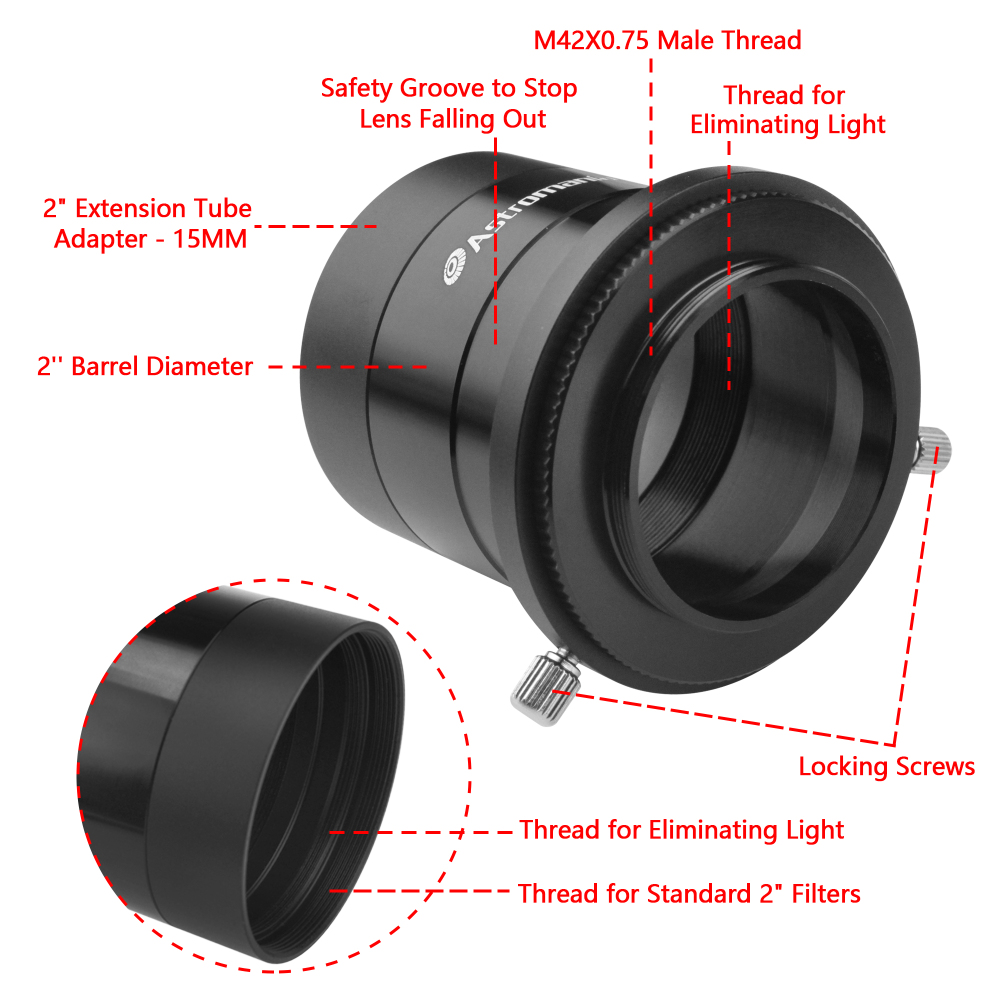

The Astromania field flattener has an M48 thread on both sides - giving you complete aperture illumination. A T2 thread plus M42 would limit the incoming light beam and so not provide sufficient aperture illumination for telescopes with 2" focusers. But using only the M48 thread, you make use of the entire light entering the telescope.

Use additional accessories - 109mm of back focus:


This field flattener has a very generous 109mm of back focus.
This means that you need a spacing of 109mm between the lens plane and the camera chip. This is an advantage, as it means you can use other accessories in between - such as a filter wheel, a flip-mirror or an off-axis guider. Using the correct Astromania extension rings will let you set the optimum spacing - whether you use accessories in between or not.

The advantages in a nutshell:

♦  Field flattener for refractors
♦  Suitable for telescopes from f4 to f8
♦  M48 thread for complete aperture illumination at 2"
♦  Room for accessories between - 109mm of back focus
♦  Excellent multi-coating on lenses





  • Field flattener for refractors, suitable for telescopes from f4 to f8.
  • M48 thread for complete aperture illumination at 2", room for accessories between - 109mm of back focus.
  • Field curvature is a common optical defect that is not noticeable with visual observing or photography using small chips.
  • Conjure astronomy photos with pin-sharp stars right out to the outer edge of the image field.
  • Excellent multi-coating on lenses.
