Astromania Camera Easy Autoguiding Set60 - the key to successful planetary photos

SKU_AM_CEAS60B
Price:
USD
$248.40
$275.99
(10% OFF)
Wholesale:
3-9
$269.99
10-29
$267.99
30-49
$264.99
50+
$261.99
    Please select the information you wantX
  • Ships From:
    The United States
    China
Quantity:
-
+
(50 available)
  • Description
  • Specifications
  • Shipping and Handling
  • Reviews(97)

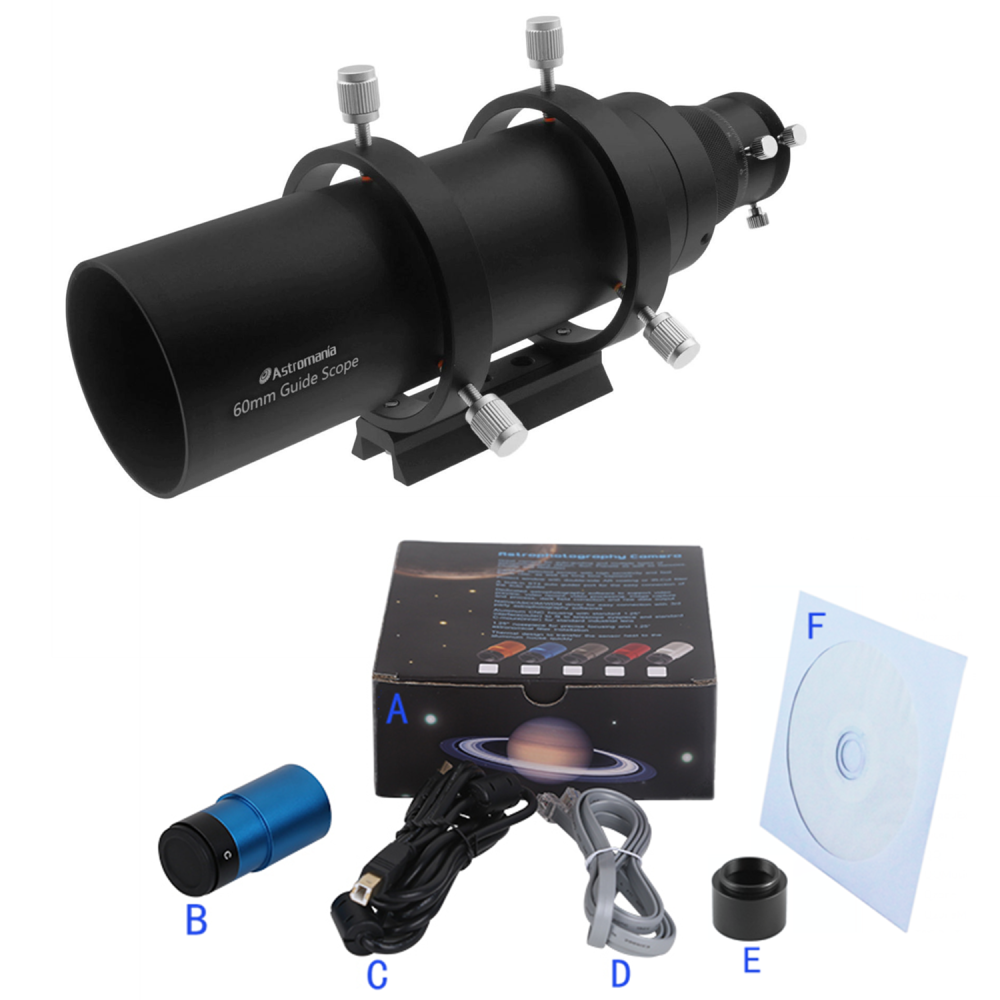

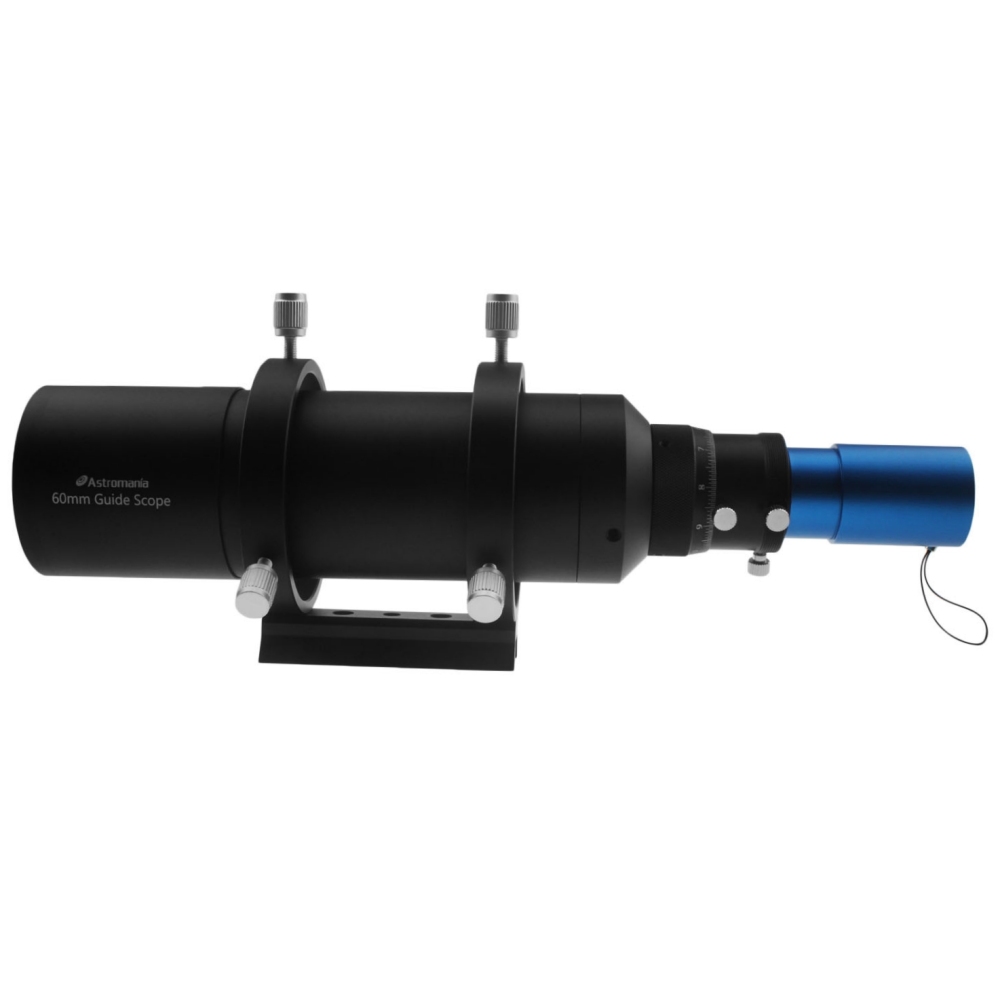

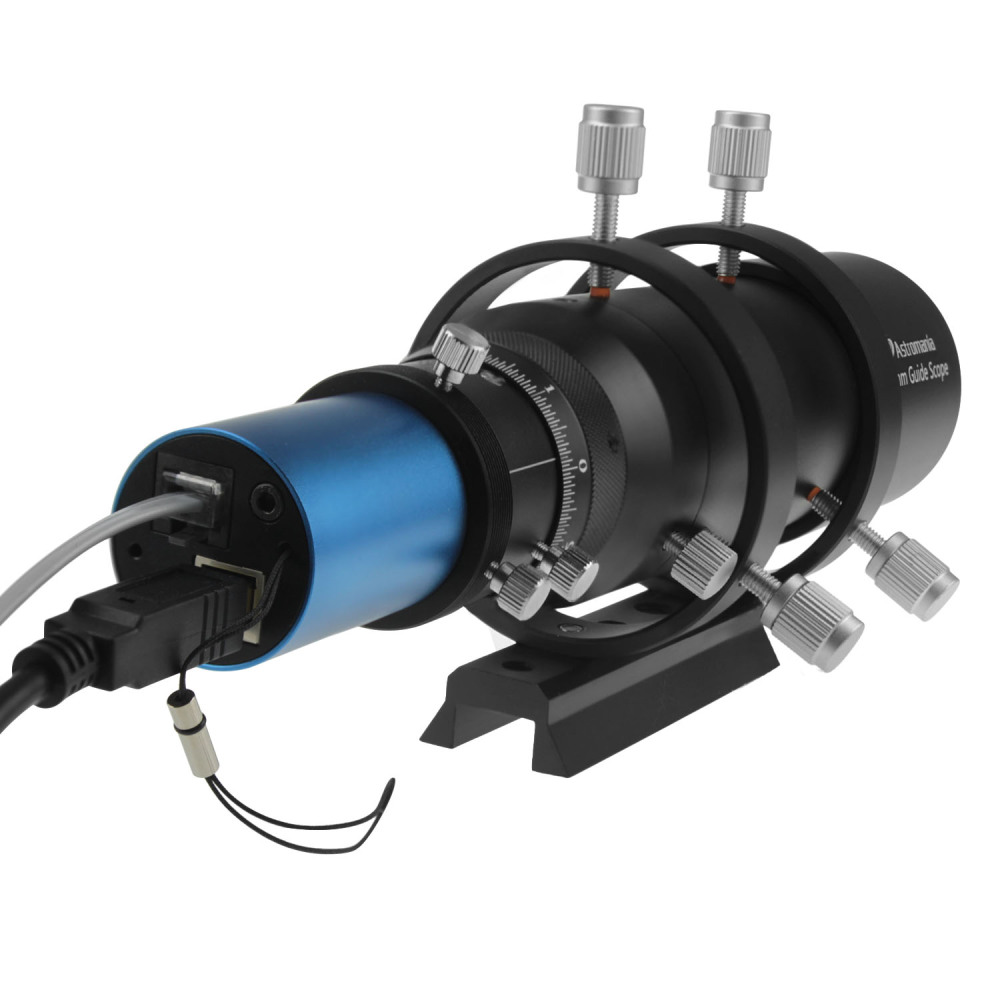

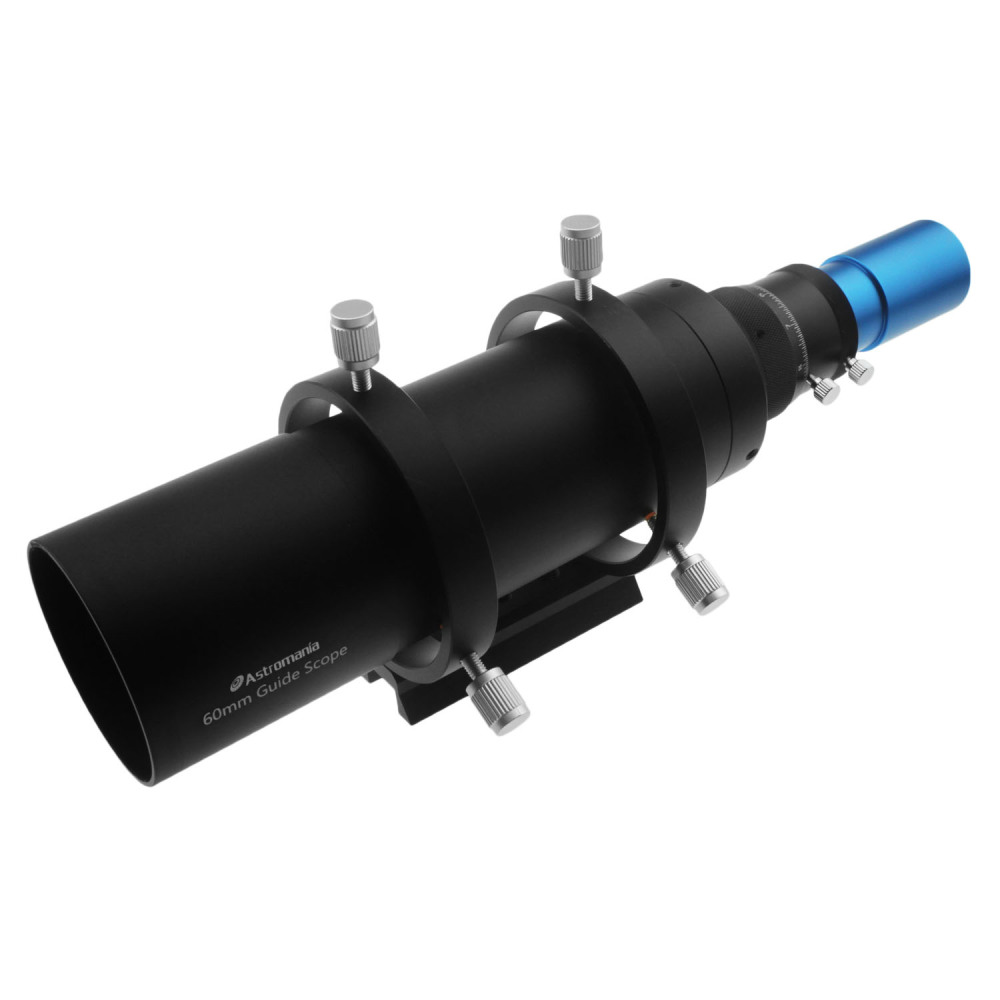

This set consists of the Astromania 60mm Deluxe Finder & Guidescope Kit and CMOS Camera

Planetary imaging and guiding camera from Astromania - the key to successful planetary photos

The Astromania SGCMOS Series Telescope CMOS Camera - Multicolour Imaging is a highly sensitive planetary camera which can turn you into a successful planetary photographer. The heart of this camera is a sensitive and low-noise CMOS chip. An optimal launching pad for sharp and high-resolution planetary imaging. But this camera can also be used to guide via a guide star.



547

The advantages in a nutshell:

♦ Highly sensitive and low-noise CMOS chip
♦ Large field of view and high 1.2 MP resolution
♦ Perfect tracking for astronomy photos - ST 4 autoguider port
♦ Software and drivers on CD-Rom
♦ C-mount connection
♦ Up to 30 frames per second
♦ Mini guide scope for rapidly locating astronomical objects and guide stars
♦ Designed for both visual and photographic use
♦ Use any 1.25 inch eyepiece from your collection
♦ Worm-gear focuser for rapid focusing. - prevents the rotation of camera and eyepiece.



745

sd

54

Large field of view and high resolution

With a resolution of 1280x960 pixels, you can plot a course directly to the planets in our solar system. The wide field of view is ideal for sharp and wide-scale images of the lunar surface. Unlike normal entry-level cameras, this camera offers a much larger chip area.

What is special about our new Astromania guide scope?

It has a built-in worm-gear focuser with 10mm displacement, allowing very precise focus adjustment. The mechanism has a fixed orientation - so there is no rotation of mounted cameras or eyepieces - or also the field of view with your guide star - when focusing.

The robust metal housing is made of black, anodized aluminium

It not only looks solid, but is very sturdy. A milled and knurled focusing ring allows straightforward and precise fine focusing. It comes with matching tube clamps and a Synta-style mounting plate to make assembly and disassembly as simple as possible.

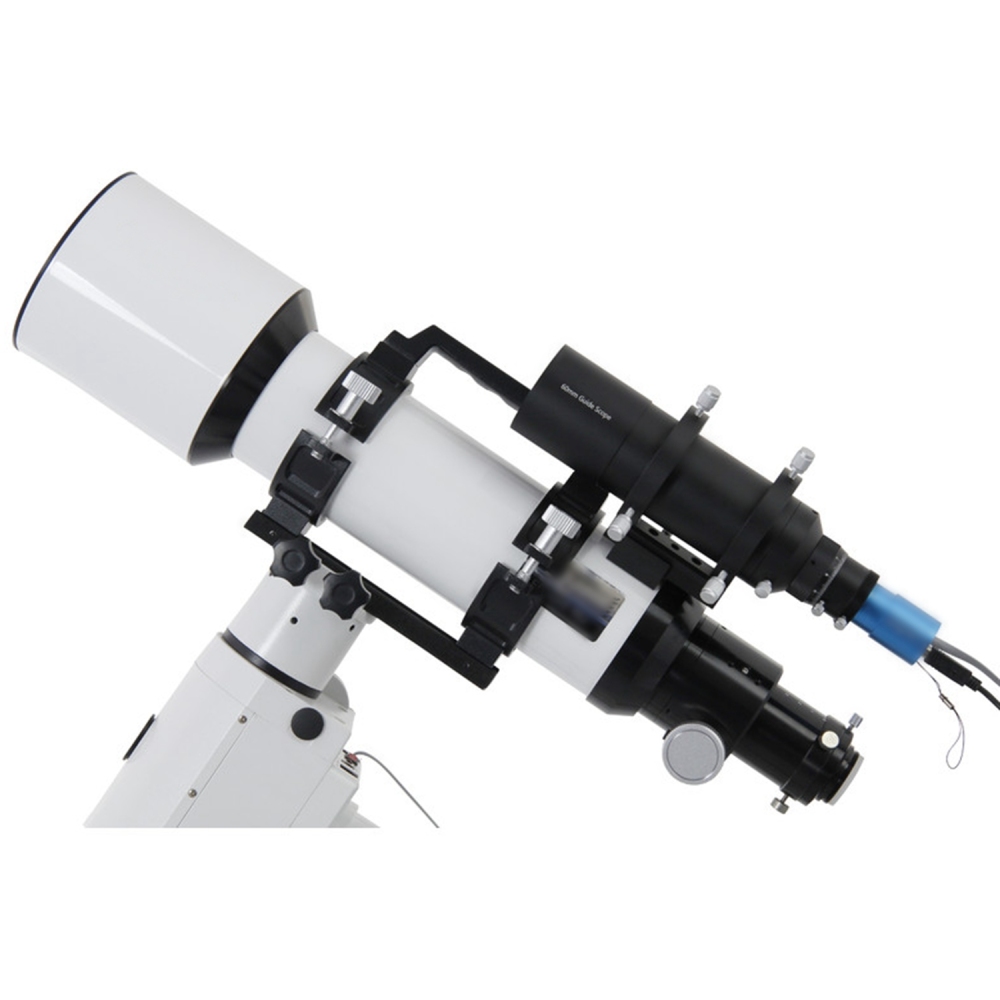

Guiding with the Mini Guide Scope - makes astrophotography easier and needs less equipment

This small guide scope takes does the job of a 'classic' guide scope - but it is lighter and much easier to use! Previously, long and unwieldy guide scopes were used to locate a guide star. But this is no longer necessary! The sensitivity of modern astronomy cameras makes this possible. You simply attach the mini guide scope onto your telescope like a finder.
Or you can use it as a convenient, large finder scope and spend less time locating objects when visually observing.

EWT


    DSG

Astromania Camera Easy Autoguiding Set60

Software Environment:

Operating System:

 ♦  M icrosoft Windows XP / Vista / 7 / 8 (32 & 64 bit) (Please con tact us for the signed driver for Win10)
 ♦  Linux/Mac OSX

PC Requirements:

 ♦ CPU: Equal to Intel Core2 2.8GHz or Highe
 ♦ Memory:2GB or More
 ♦ USB Port:USB2.0 High-speed Port
 ♦ Display:17” or Larger
 ♦ CD-ROM



Sensor & Size(mm):1.2M/AR0130(C); 1/3“(4.8x3.6)

1. Pixel(μm):3.75 x3.75
2. G Responsivity:5.5v/lux-sec; 85.3dB; 44dB
3. FPS/Resolution:28@1280x960; 30@640x480
4. Binning:1x1, 2x2
5. Exposure(ms):0.4ms~2000ms


Other Specification for SGCMOS Cameras:

1. Spectral Range: 380-650nm (with IR-cut Filter), 350-1050nm(with double side AR Coating protect window)
2. White Balance: ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
3. Color Technique: Ultra-FineTM Color Engine/NA for Color Sensor
4. Capture/Control API: Native C/C++, C#, DirectShow, Twain
5. Recording System: Still Picture and Movie
6. Cooling System*: Natural with High Performance Cooling Structure
7. Guiding Port: ST4-port


Operating Environment:

1. Operating Temperature(in Centidegree): -10~ 50
2. Storage Temperature(in Centidegree): -20~ 60
3. Operating Humidity: 30~80%RH
4. Storage Humidity: 10~60%RH
5. Power Supply: DC 5V over PC USB Port



  • The advantages in a nutshell:(1)Mini guide scope for rapidly locating astronomical objects and guide stars.(2)Designed for both visual and photographic use.(3)Use any 1.25 inch eyepiece from your collection.(4)Worm-gear focuser for rapid focusing - prevents the rotation of camera and eyepiece.
  • Planetary imaging and guiding camera - the key to successful planetary photos: The CMOS Camera is a highly sensitive planetary camera which can turn you into a successful planetary photographer. The heart of this camera is a sensitive and low-noise CMOS chip. An optimal launching pad for sharp and high-resolution planetary imaging. But this camera can also be used to guide via a guide star.
  • Large field of view and high resolution: With a resolution of 1280x960 pixels, you can plot a course directly to the planets in our solar system. The wide field of view is ideal for sharp and wide-scale images of the lunar surface. Unlike normal entry-level cameras, this camera offers a much larger chip area.
  • The robust metal housing is made of black, anodized aluminium: It not only looks solid, but is very sturdy. A milled and knurled focusing ring allows straightforward and precise fine focusing. It comes with matching tube clamps and a Synta-style mounting plate to make assembly and disassembly as simple as possible.
  • Guiding with the Mini Guide Scope - makes astrophotography easier and needs less equipment: This small guide scope takes does the job of a 'classic' guide scope - but it is lighter and much easier to use! Previously, long and unwieldy guide scopes were used to locate a guide star. But this is no longer necessary! The sensitivity of modern astronomy cameras makes this possible. You simply attach the mini guide scope onto your telescope like a finder.
