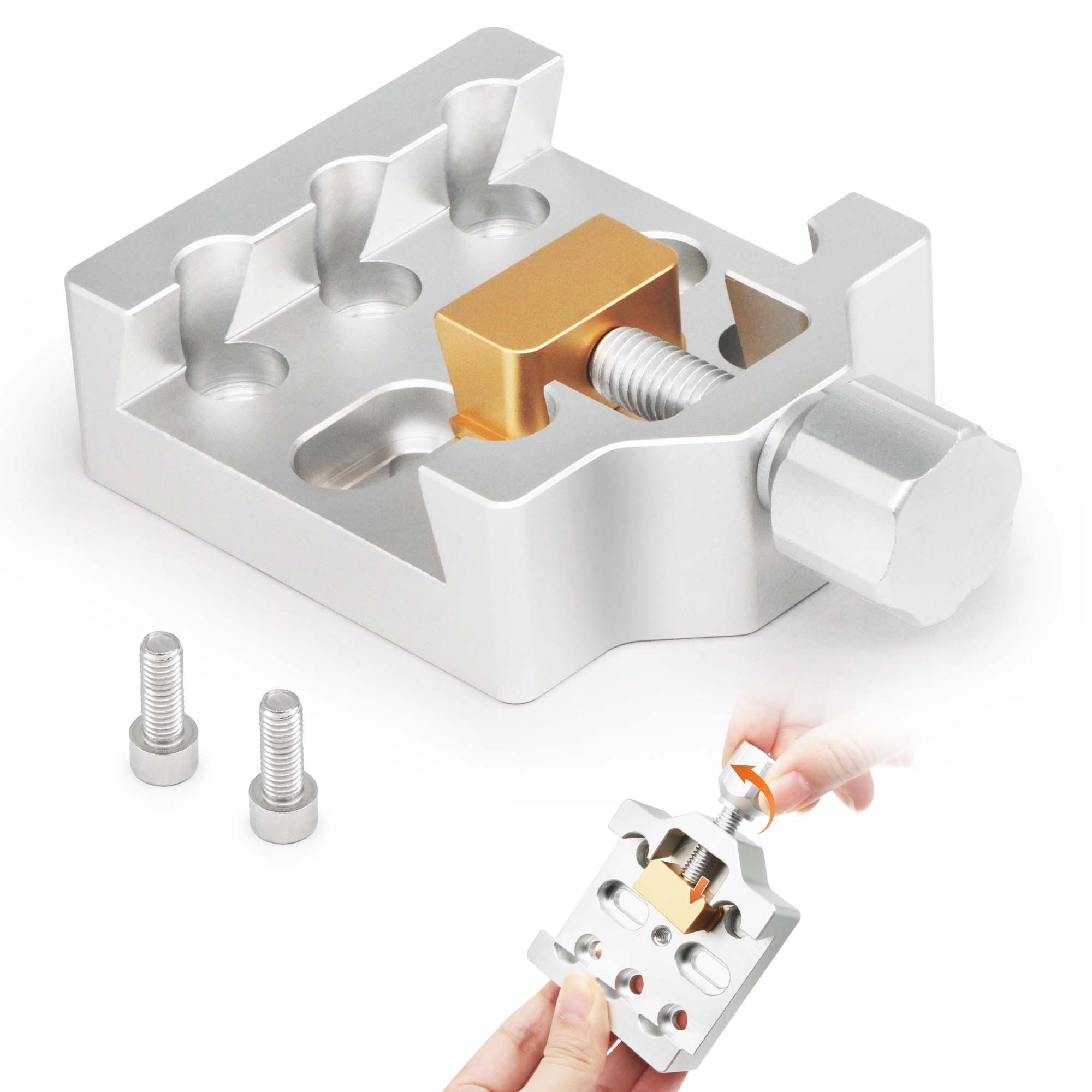

Astromania Middle-sizes dovetail with one screw - for telescopes and cameras

SKU: SKU_AM_MD
5.0 (60 Reviews)
180 Sold
$34.68 $26.67
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
$39.99
3-9
$37.99
10-29
$36.99
30-49
$34.99
50
    Please select the information you want X
  • Ships From:
    China
    The United States
Quantity:
-
+
1 * $26.67 = $26.67
save $0.00
Add to Favorites (178)
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
1/1
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Astromania Middle-sizes dovetail with one screw - for telescopes and cameras
  • Description
  • Specification
1
1
1
1
1
1

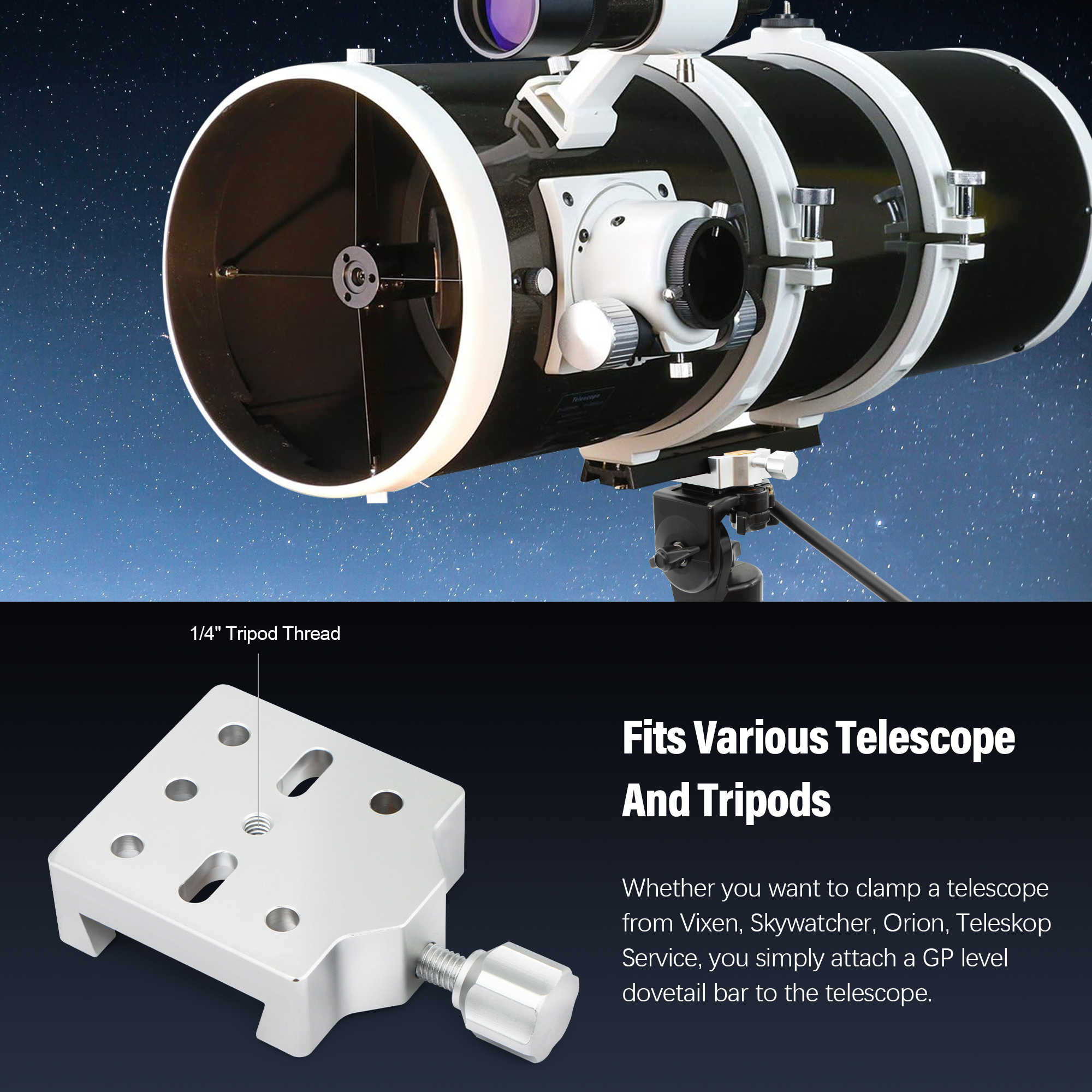

  • Simply screw the dovetail clamp onto your photo tripod or tripod head, and you can mount your telescope on the tripod.

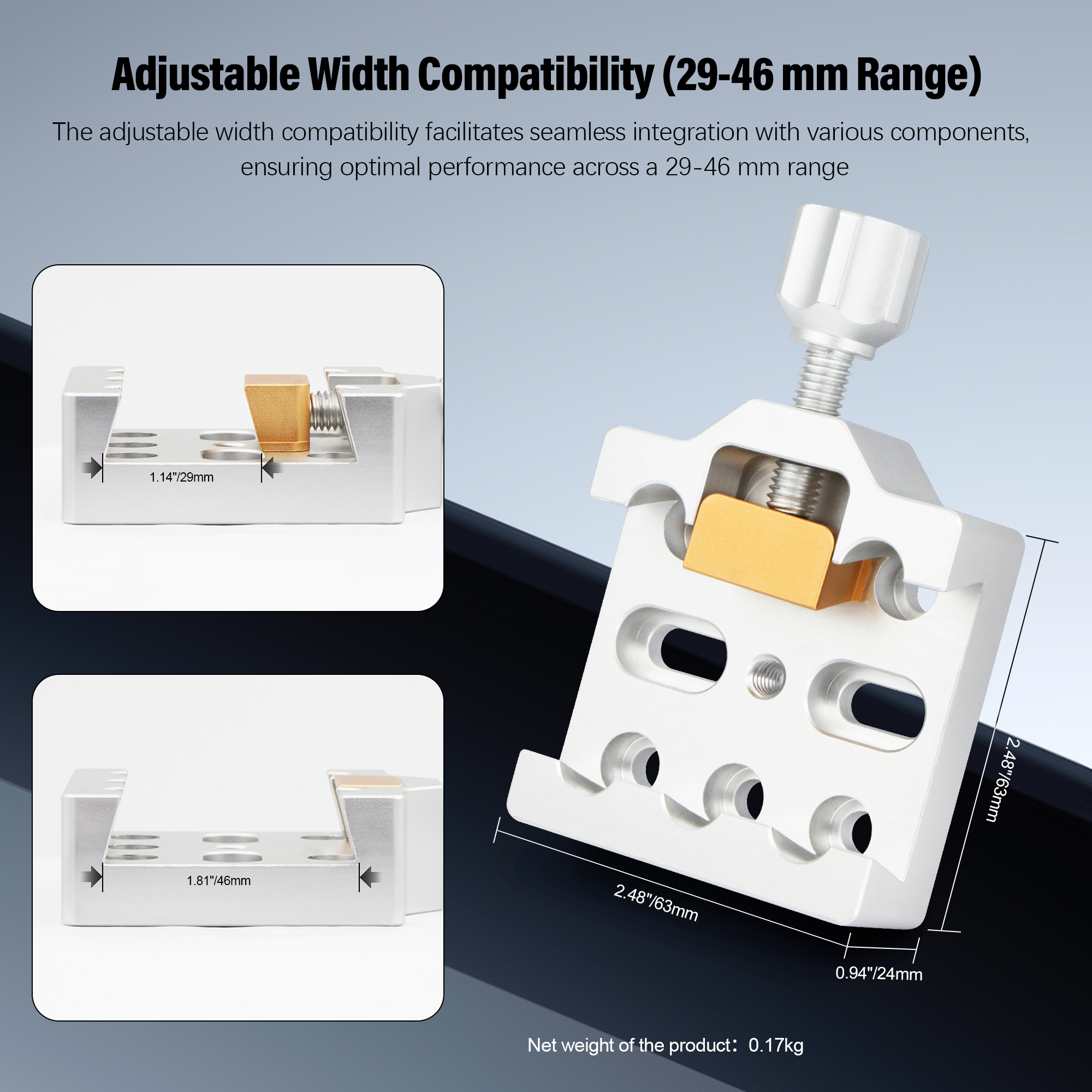

  • A generously dimensioned surface with 25 mm width presses the bar against the othe side of the clamp.
  • Areal clamping - protects the accessories and provides a very stable connection, two drilled (but not threaded) in the middle with to accommodate screws up to 6mm in diameter, center-to-center screw hole spacing is from 27 to 43mm.

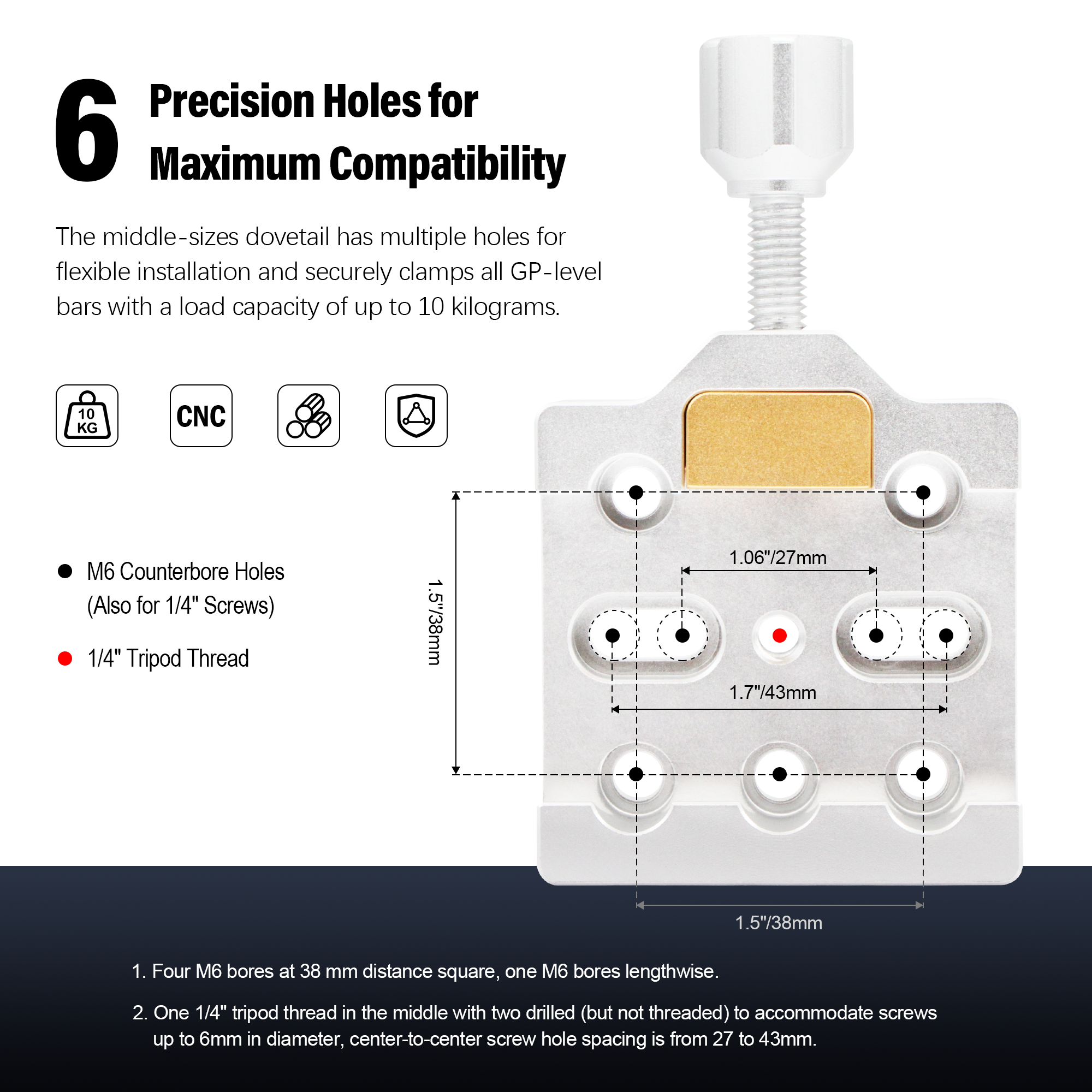

  • For attaching the clamp, 7 bores are available for M6 and 1/4" screws. Four M6 bores at 38 mm distance square, one M6 bores lengthwise. One 1/4" tripod thread in the middle with two drilled (but not threaded) to accommodate screws up to 6mm in diameter, center-to-center screw hole spacing is from 27 to 43mm. All functions, especially the clamping, are completely kept. The clamping screw can be used without problems.

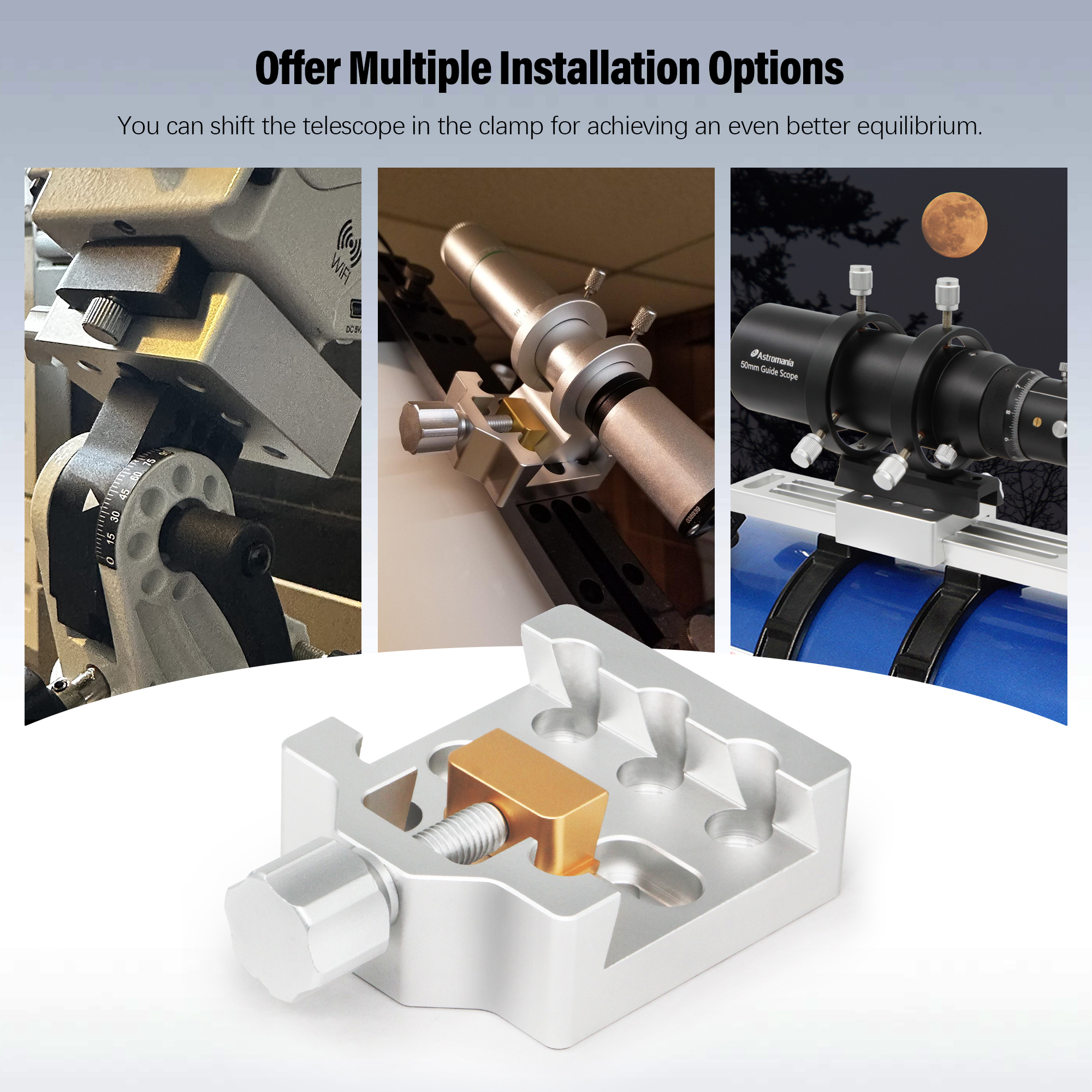

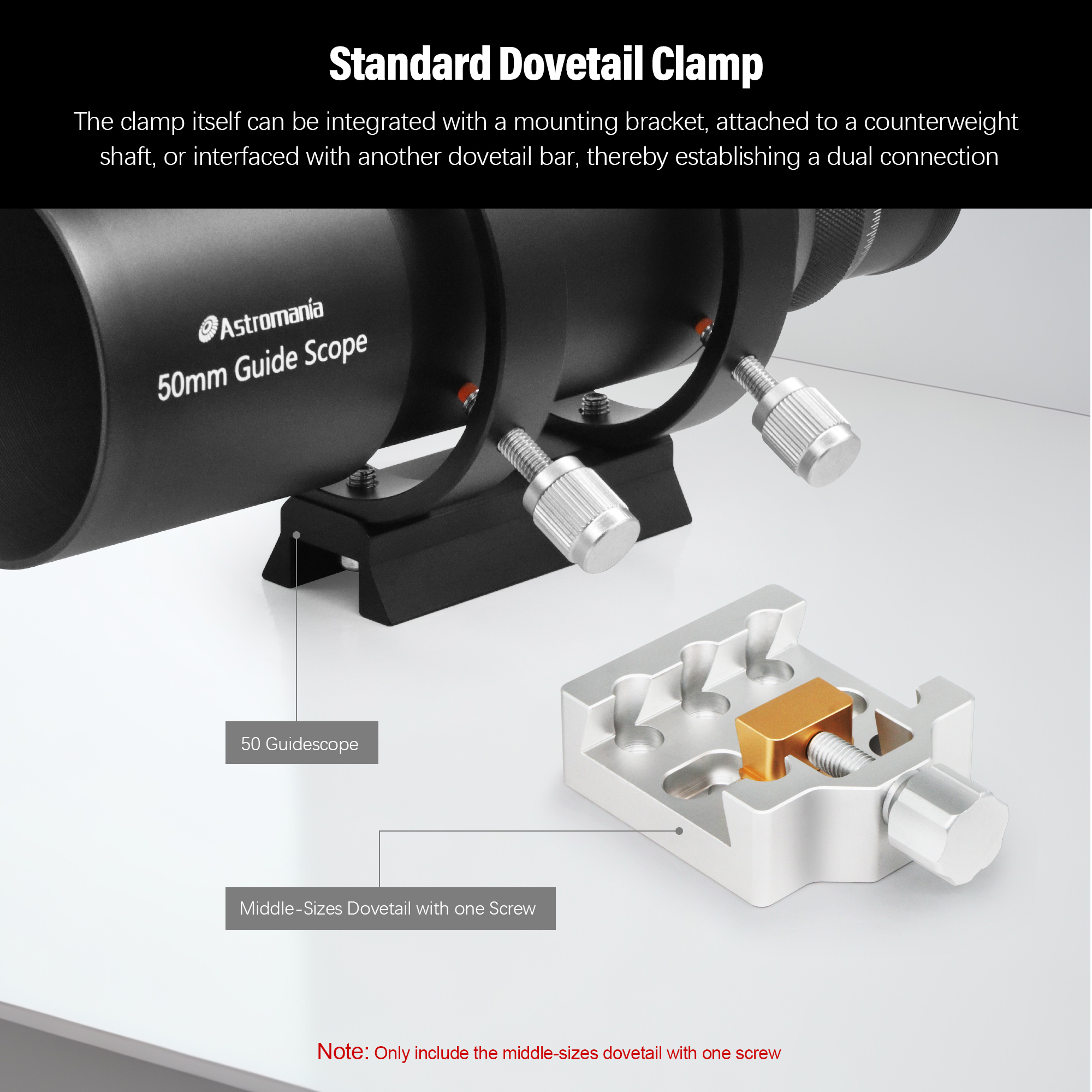

  • The clamp itself can be adapted to a mount, to the counterweight shaft or another dovetail bar, building a double connection.
