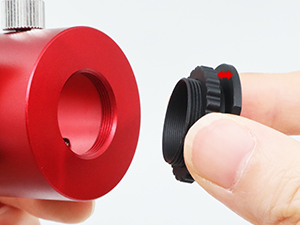

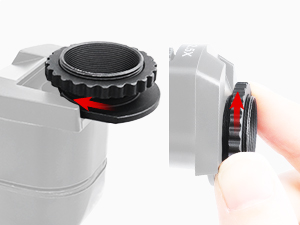

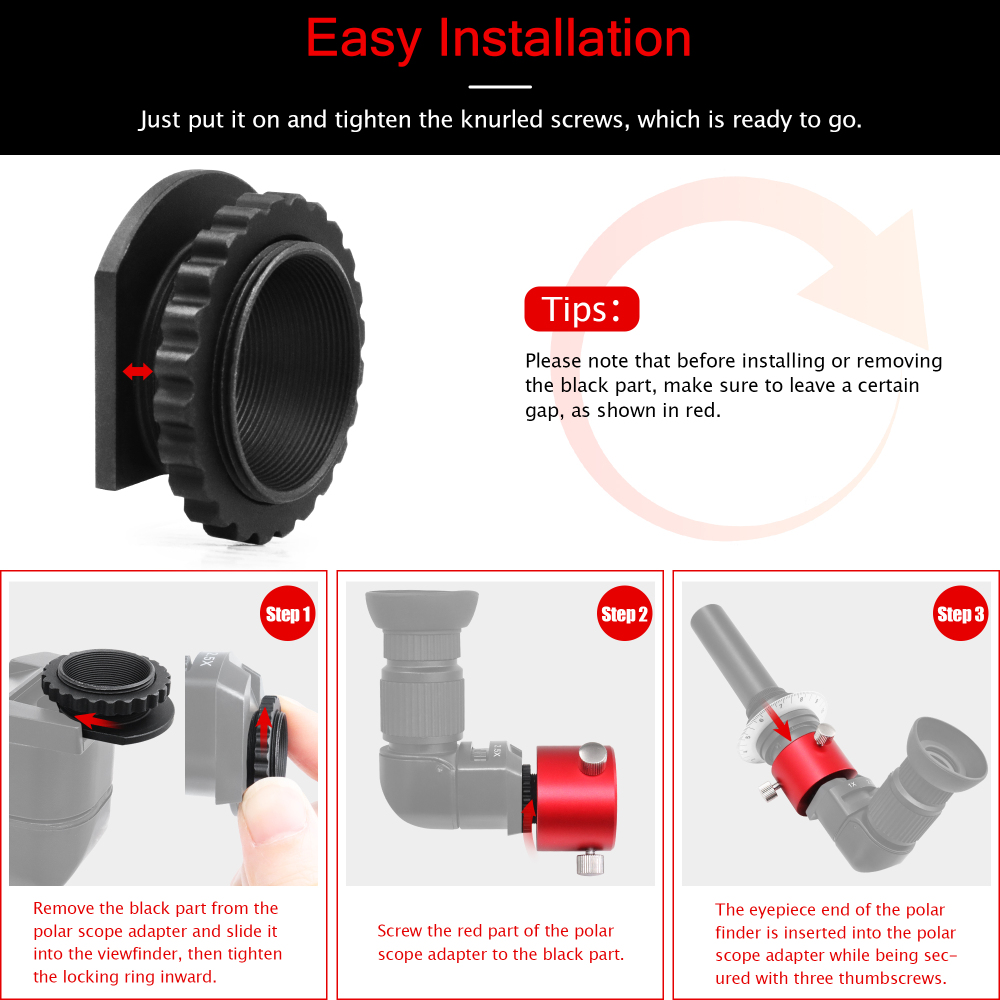

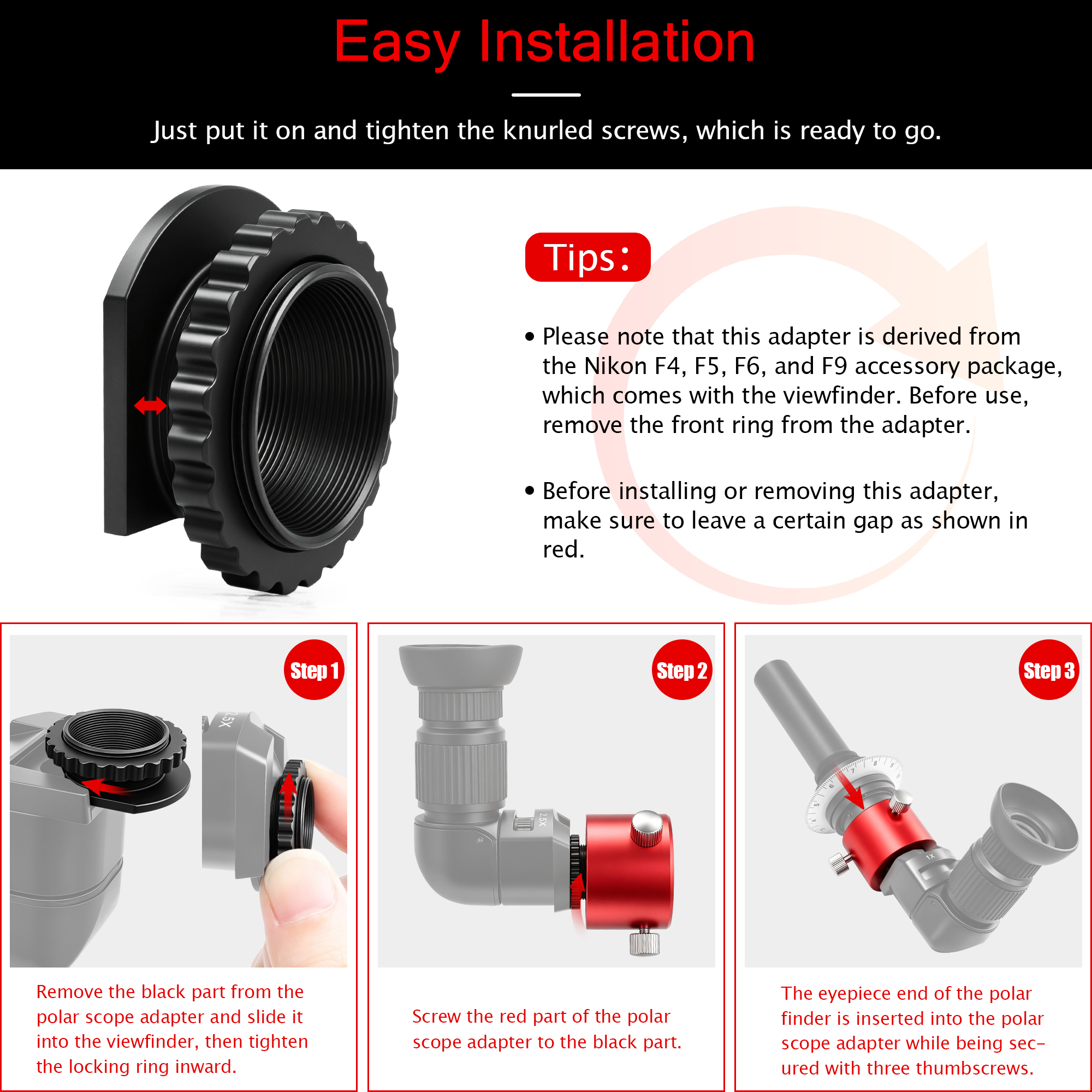

| Step 1: Remove the black part from the polar scope adapter and leave a certain gap by rotating the locking ring outwards. |
Step 2: Slide the black part to the viewfinder, then tighten the locking ring inward. |
Step 3: Screw the red part of the polar scope adapter to the black part. |

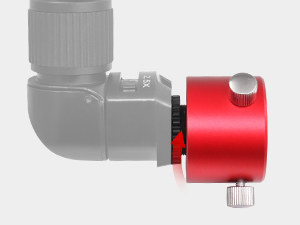

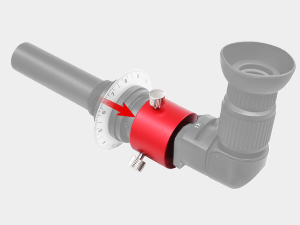

Step 4: The eyepiece end of the polar finder is inserted into the polar scope adapter while being secured with three thumbscrews. |
 |
 |
 |
| Function Point 1 View at right angles or arbitrarily rotated any 360 degrees. Function Point 3 Made of 9 elements in 5 groups with high quality roof prism. Function Point 3 Made of 9 elements in 5 groups with high quality roof prism. |

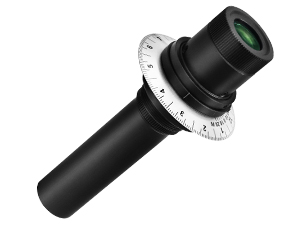

Function Point 1 Multi-coated optics provide maximum detail and definition. Function Point 2 A 12-hour scale gives you a second straightforward way to align the mount. Function Point 3 New reticle has a clock like engraving for aligning easier and more accurate. |

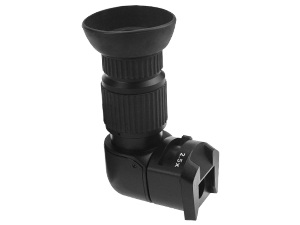

Function Point 1 View at right angles or arbitrarily rotated any 360 degrees. Function Point 2 Manually Adjustable Magnification Between 1X and 2.5X. Function Point 3 Directly connected to polariscope for polaritalignment. |

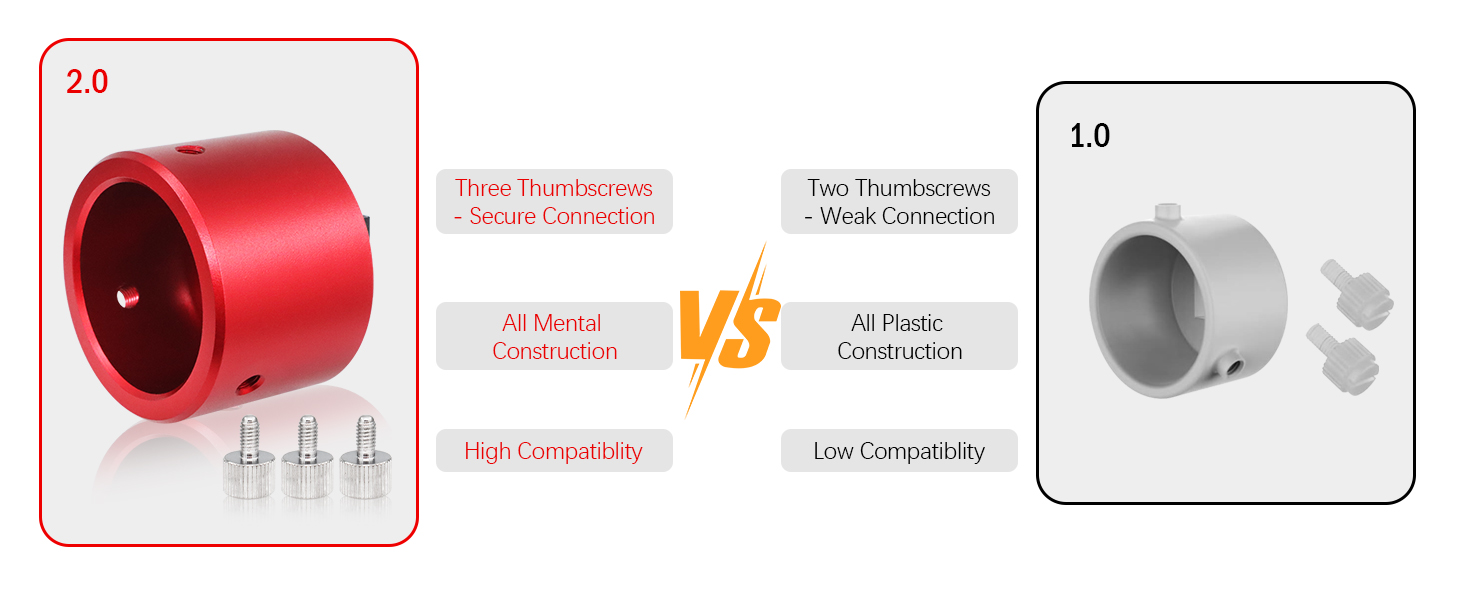

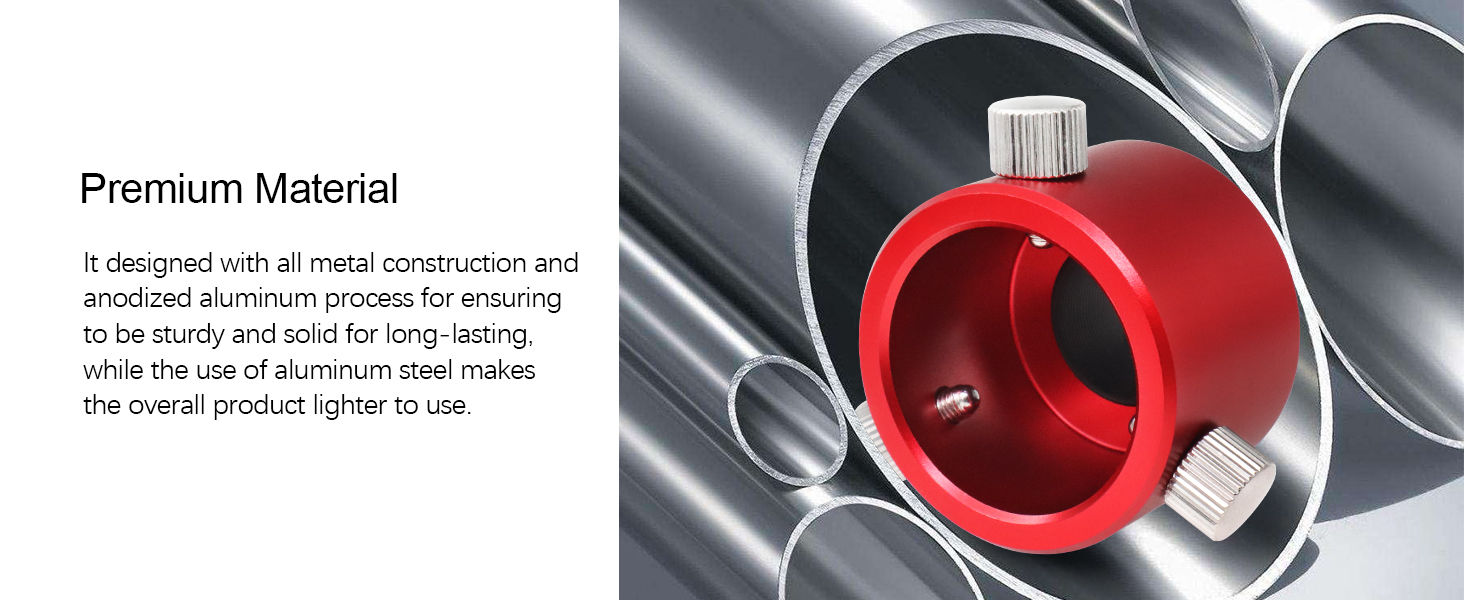

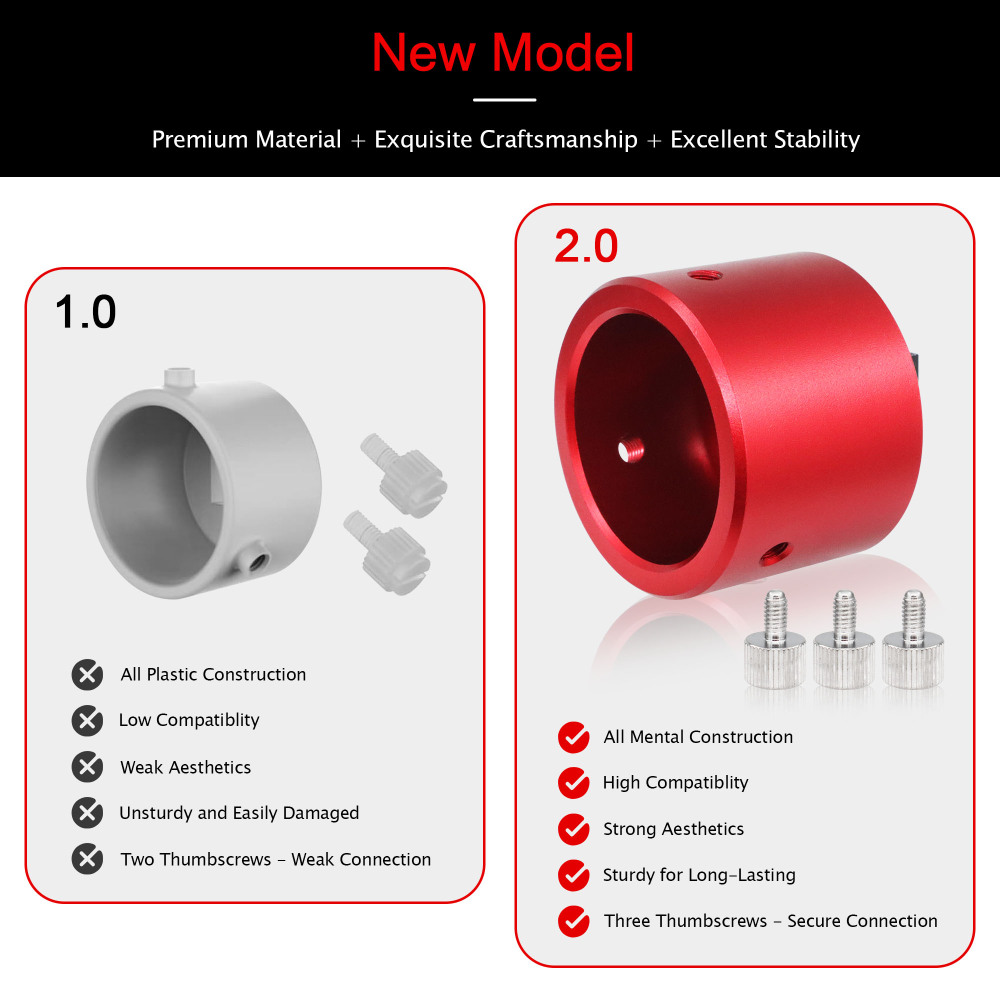

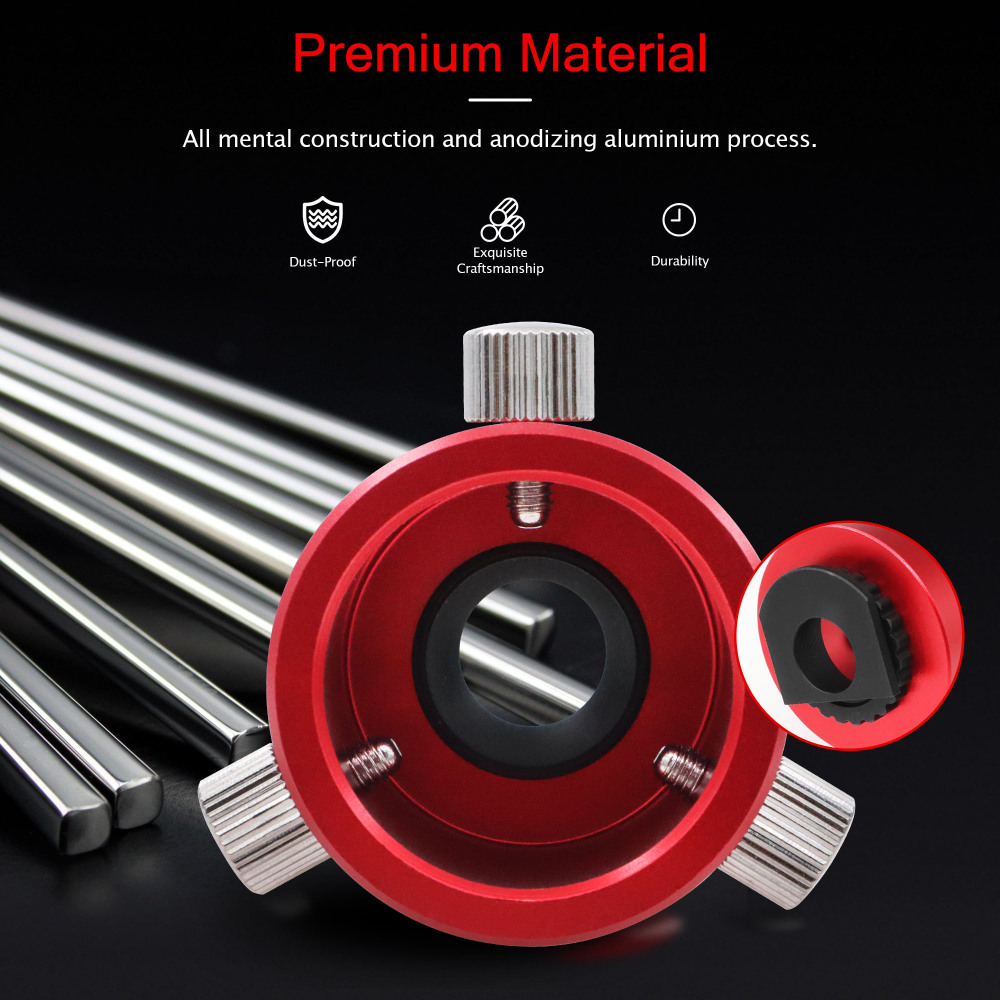

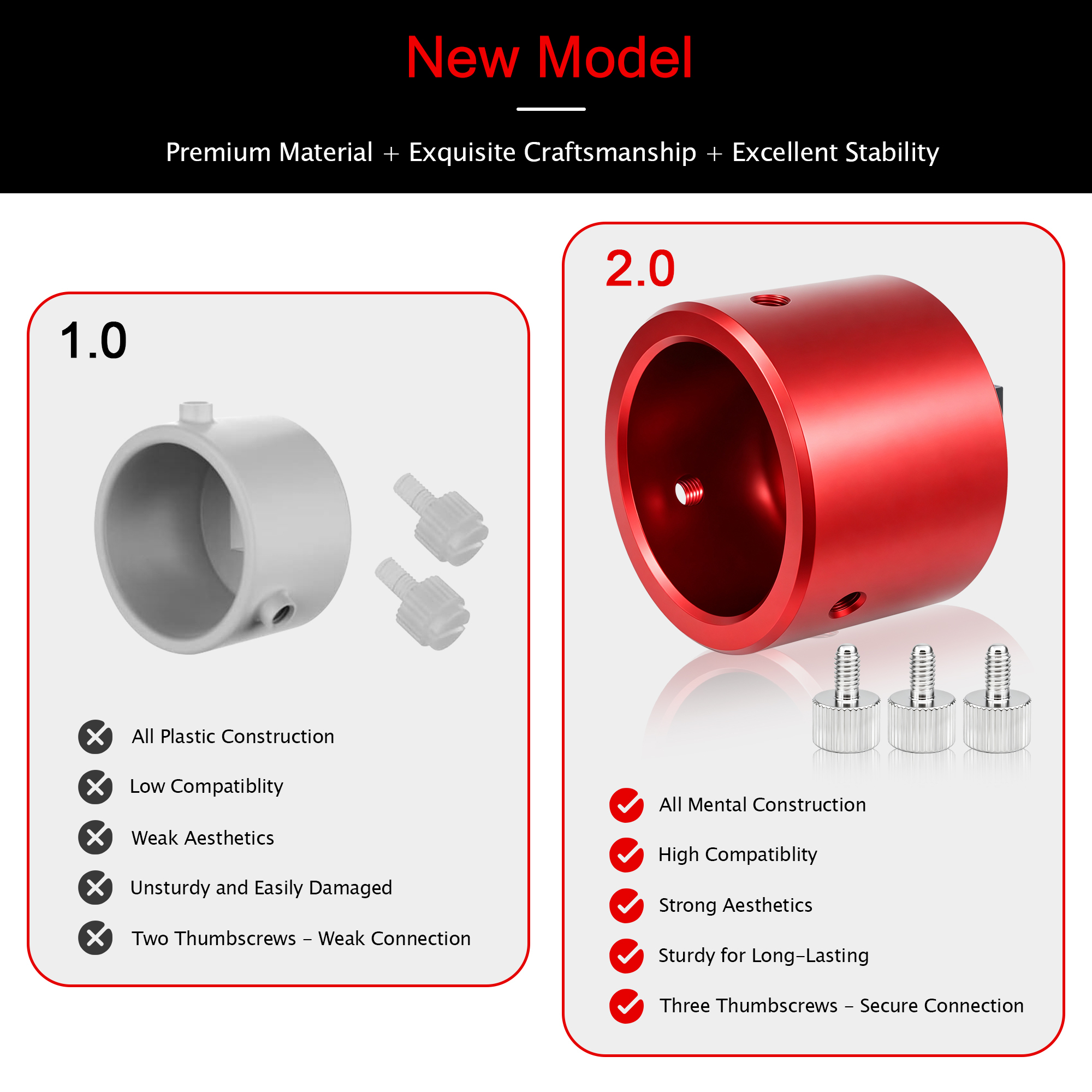

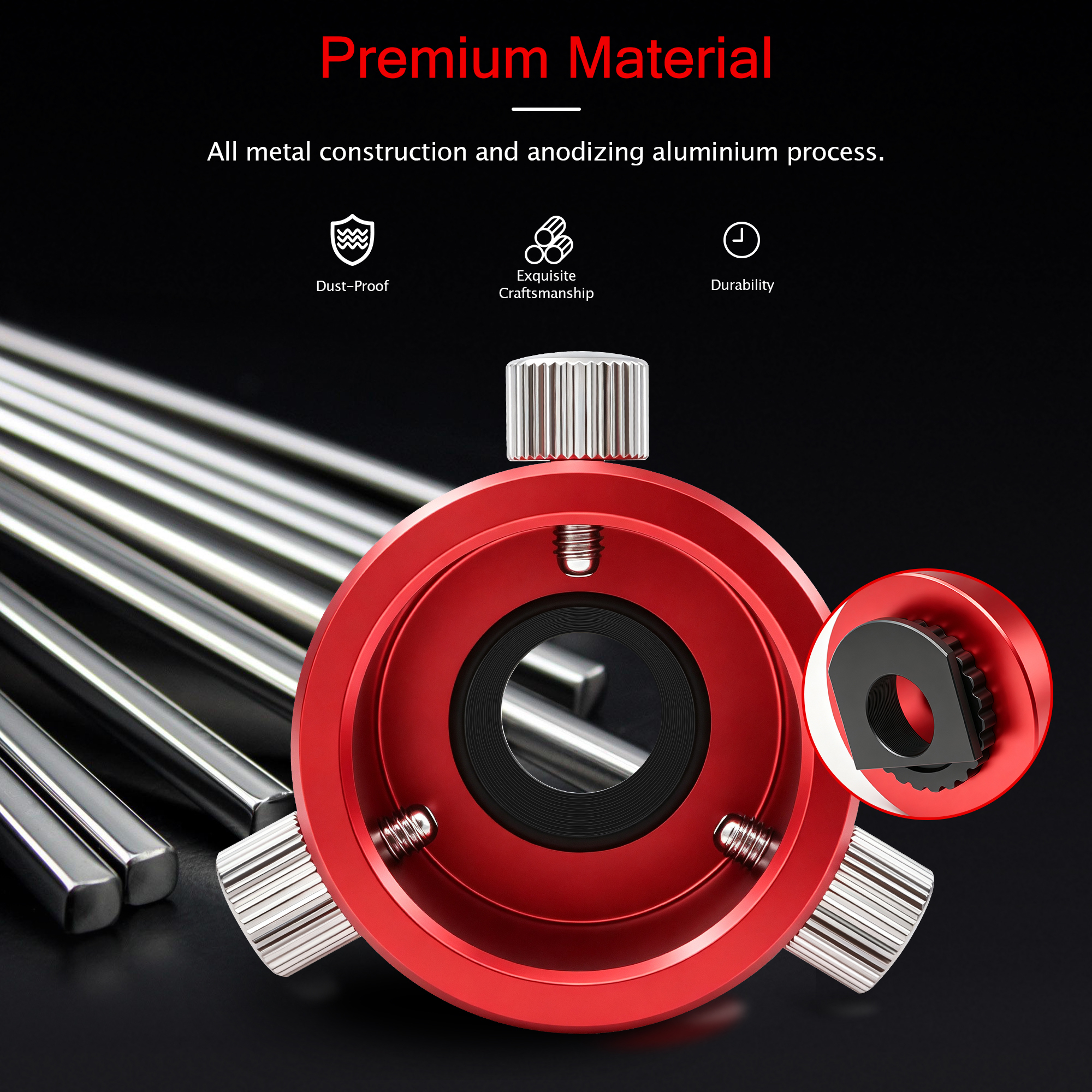

【High Quality Material】 All metal construction and precise craftmanship, which can be sturdy for ensuring long-lasting use.

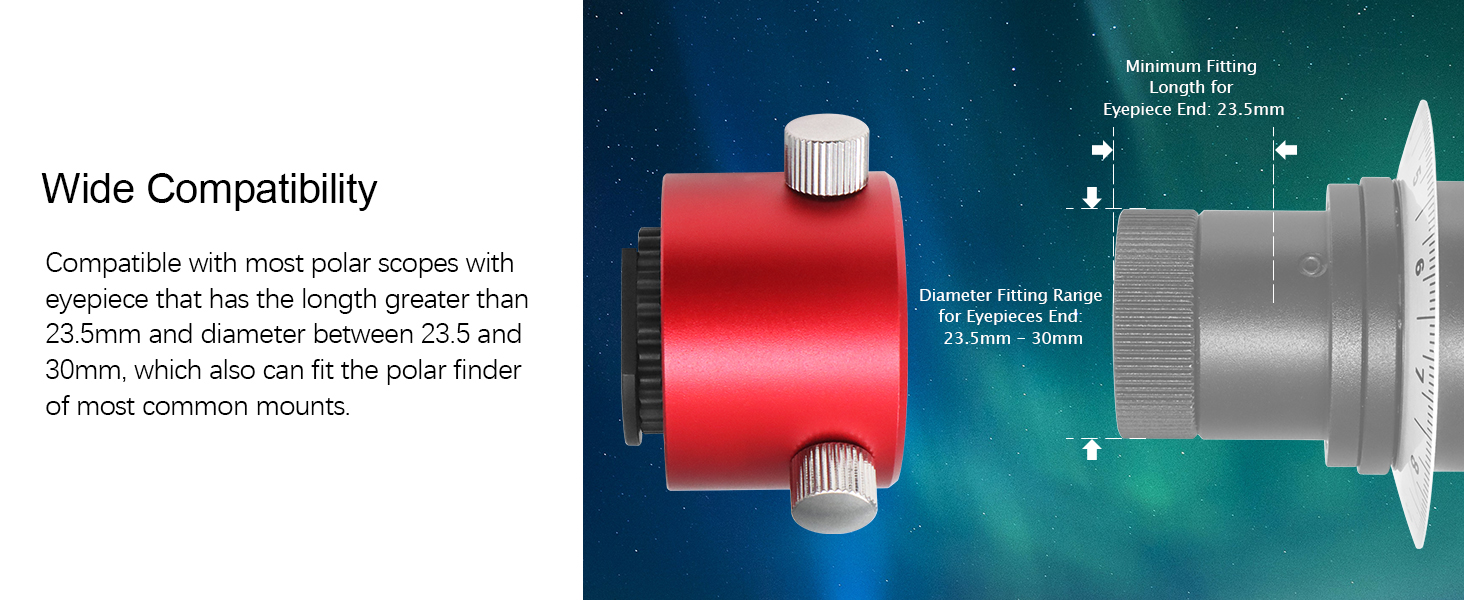

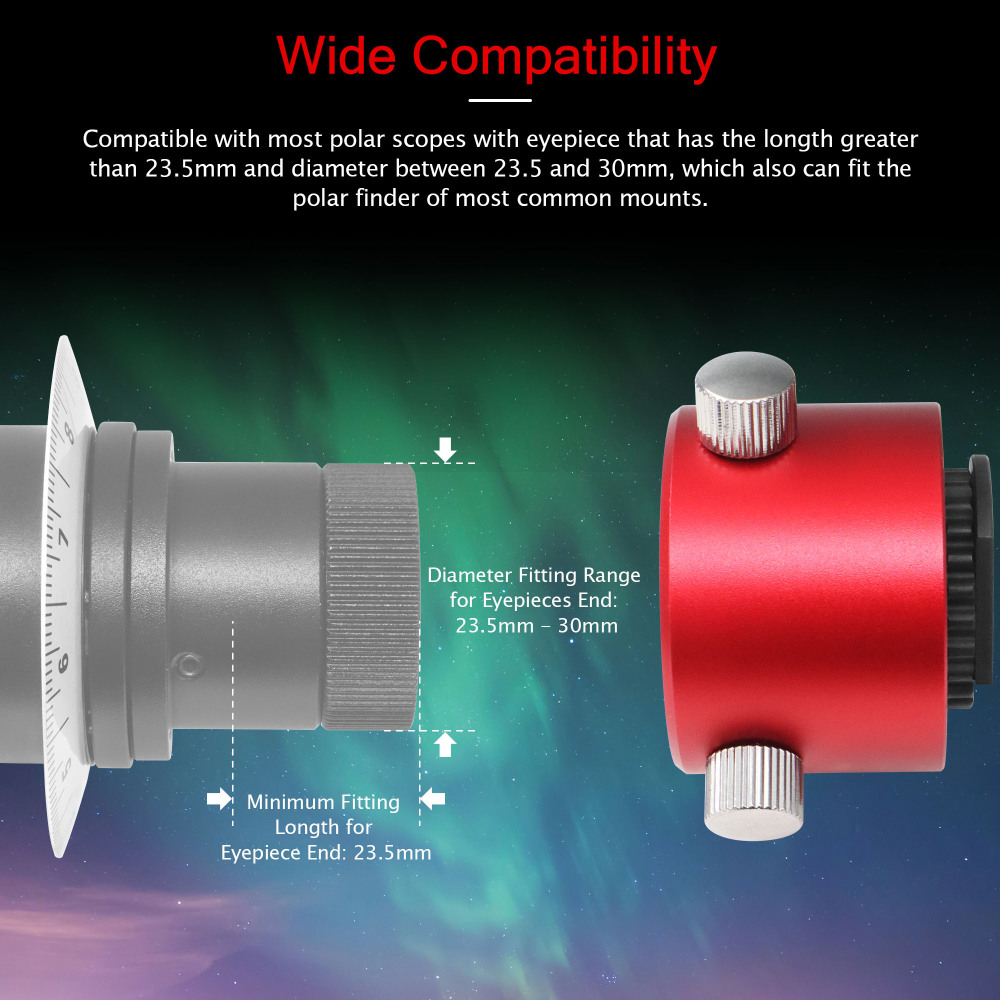

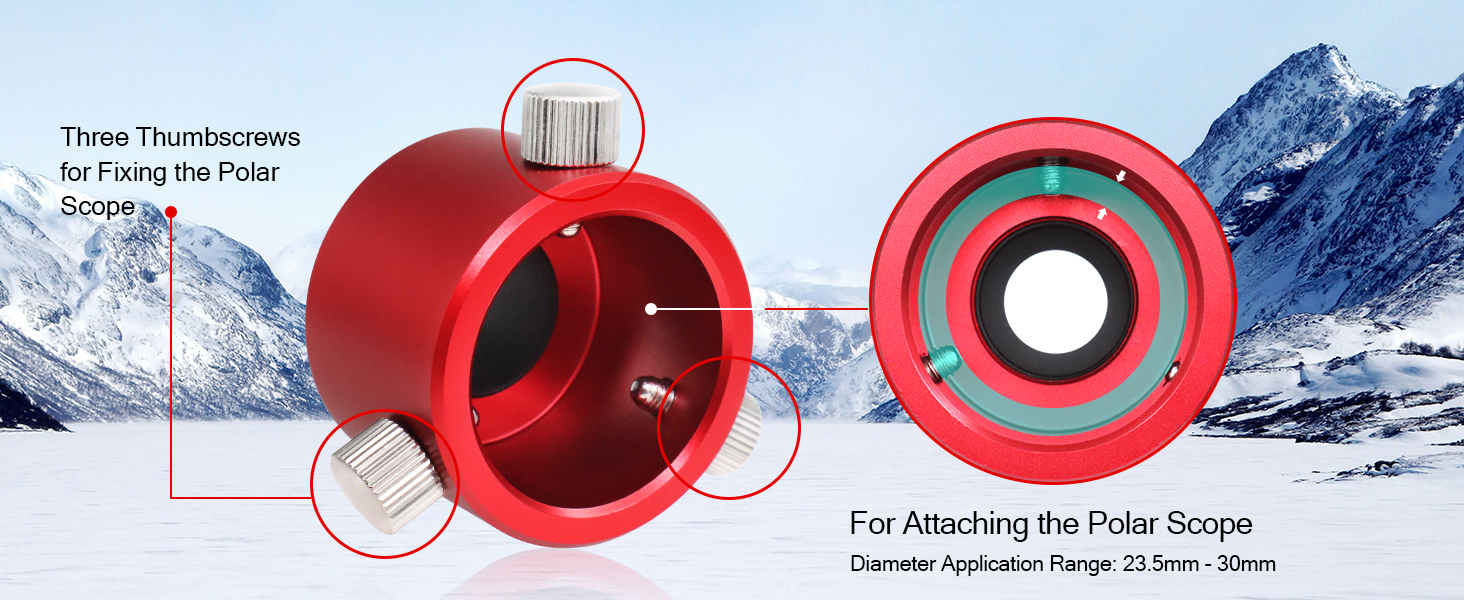

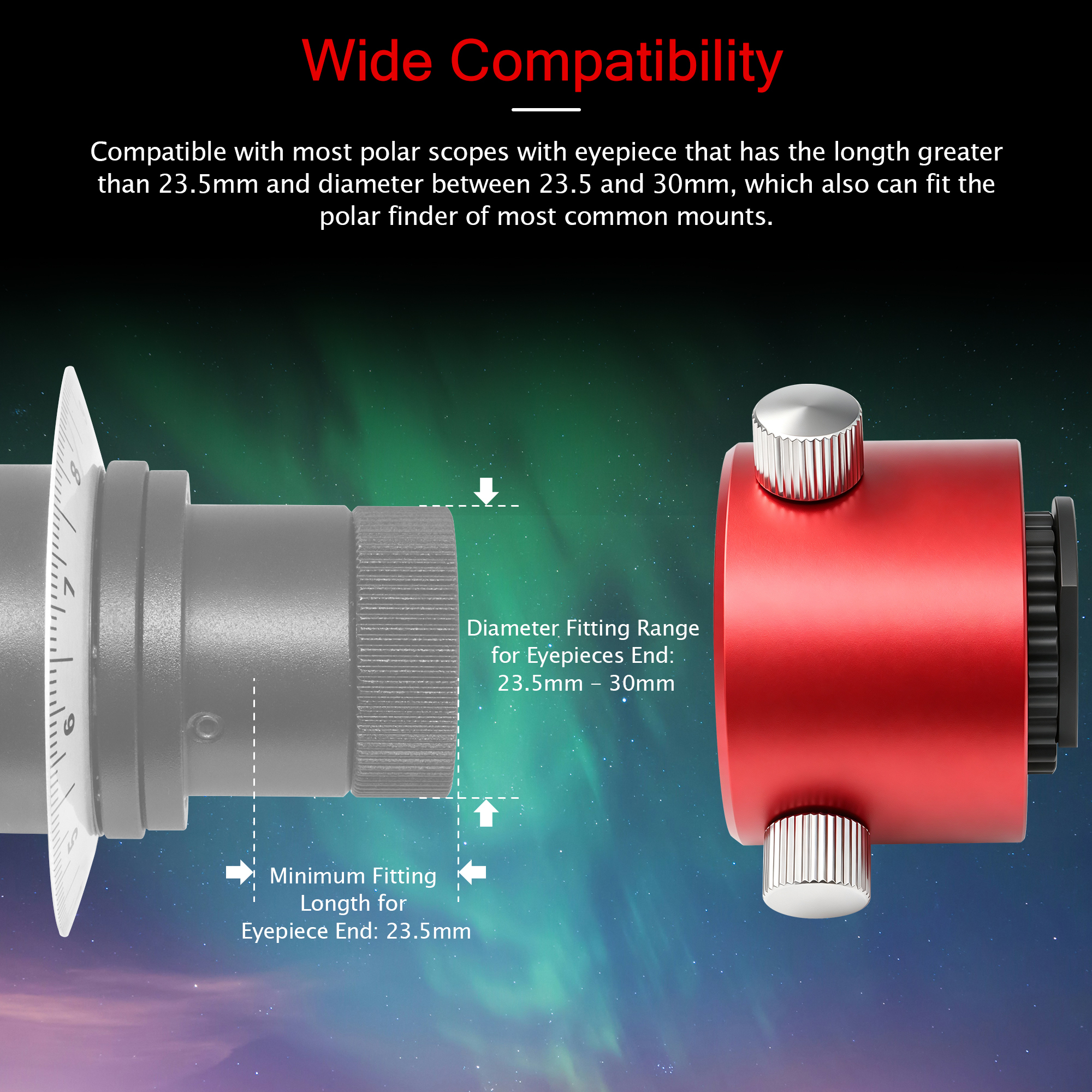

【Widely Compatibility】 Compatible with most polar scopes with cylindrical eyepiece that has the height greater than 23.5mm and a diameter between 23.5 and 30mm, which also can fit onto the polar finder of most common mounts.

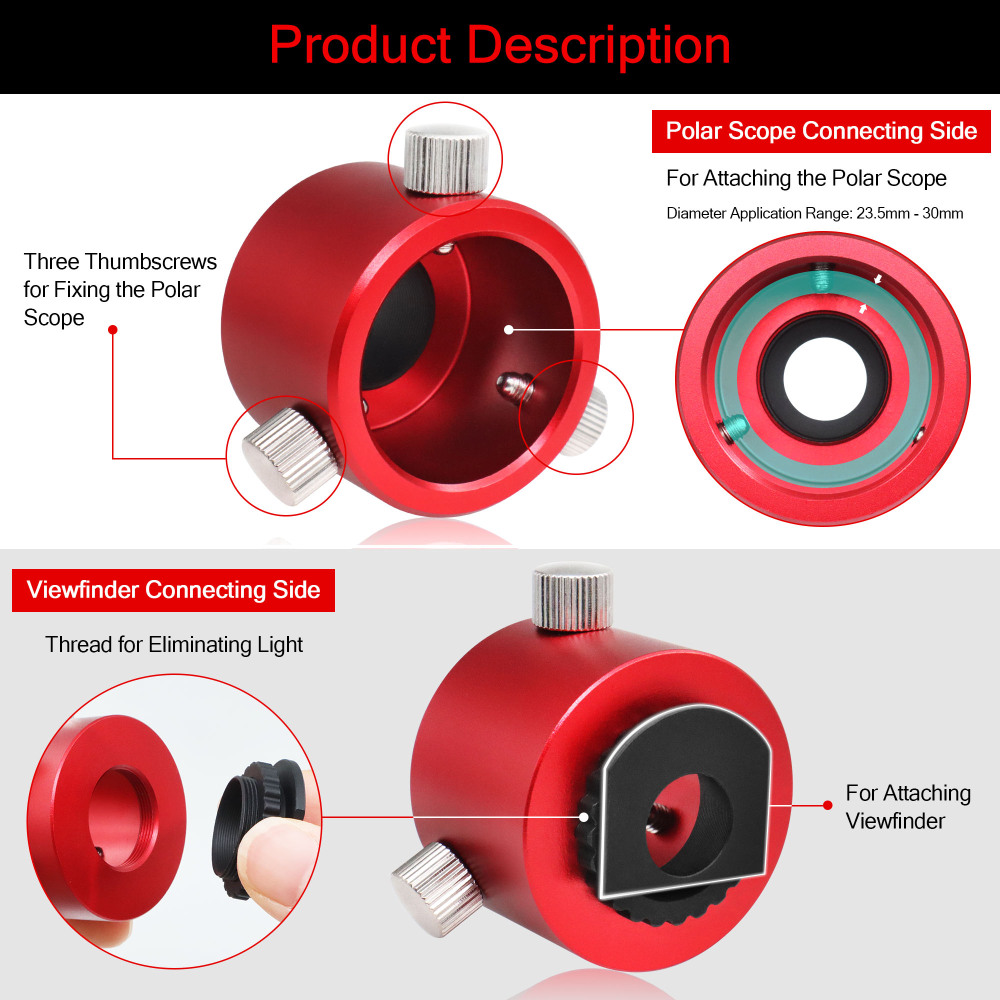

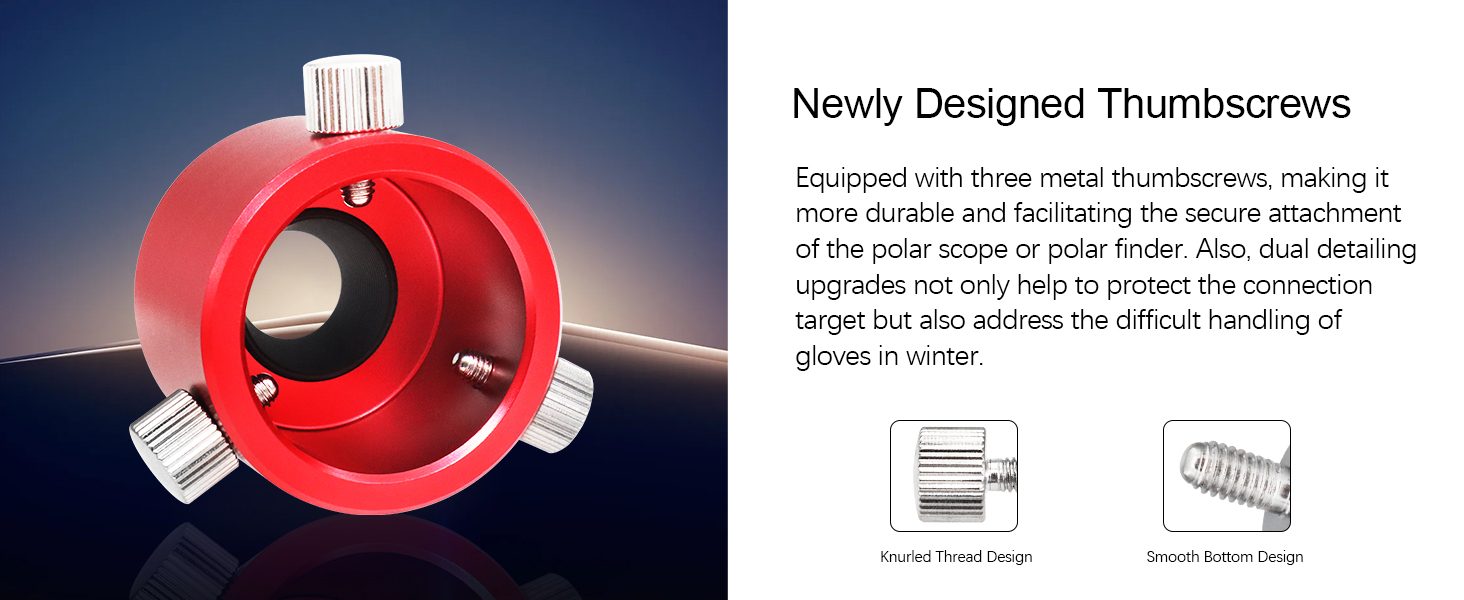

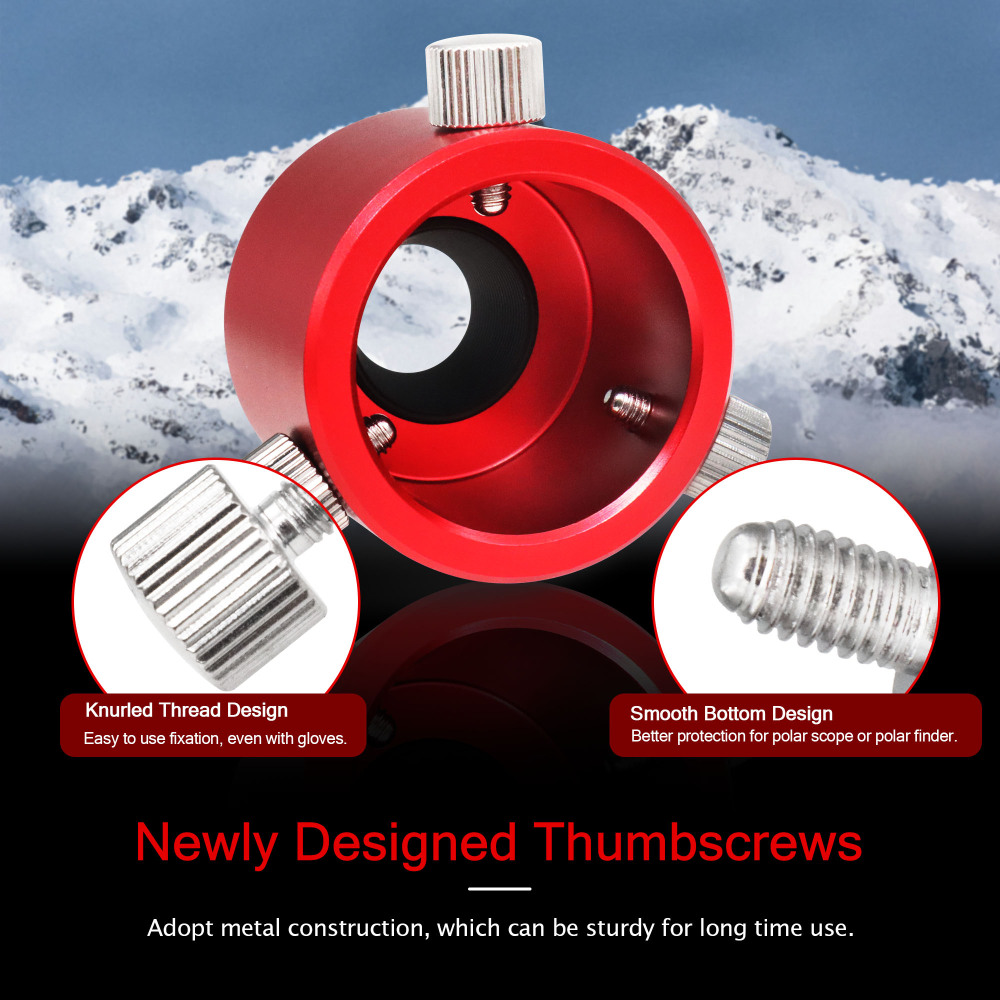

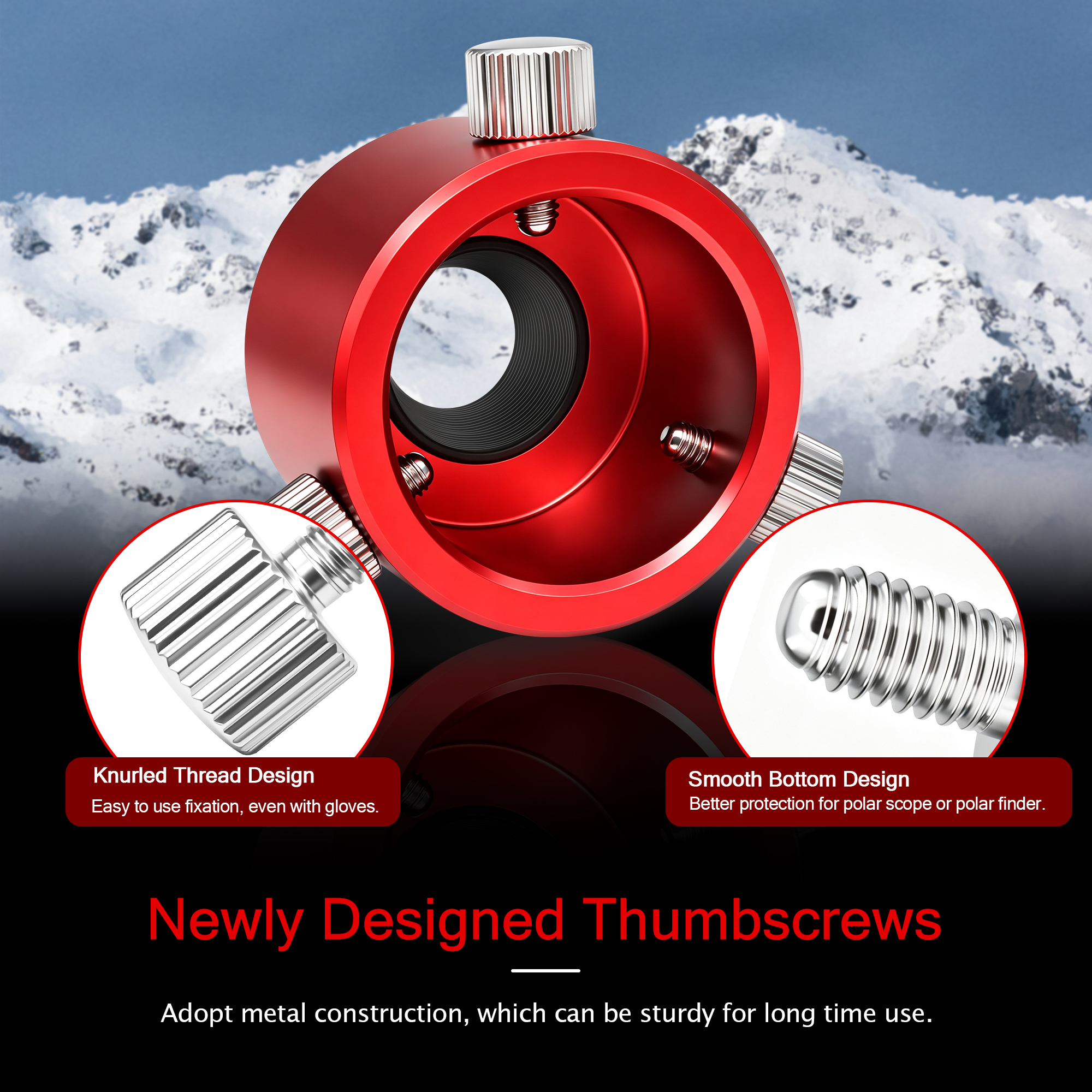

【Upgraded Screw Design]】 Equipped with three thumbscrews, and its knurled thread design and smooth bottom design make it easier to secure the viewer to your mount's polar scope, while providing better protection for the connected object.

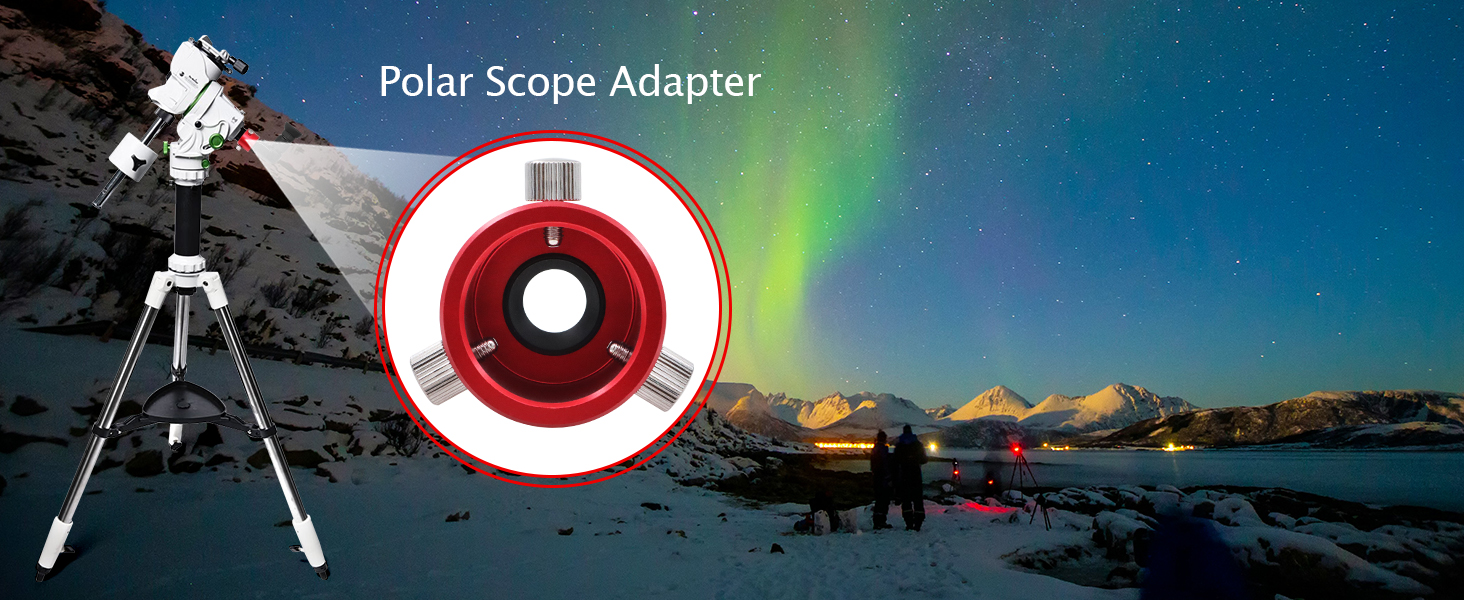

【Applicable Objects】 Fits on common polar scopes, including Orion Atlas Pro, Atlas EQ-G, Skywatcher EQ5, AZ-EQ5, HEQ5, EQ6, AZ-EQ6, Adventurer, Adventurer mini, Lacerta Polarie polar finder and so on.

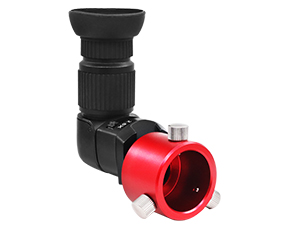

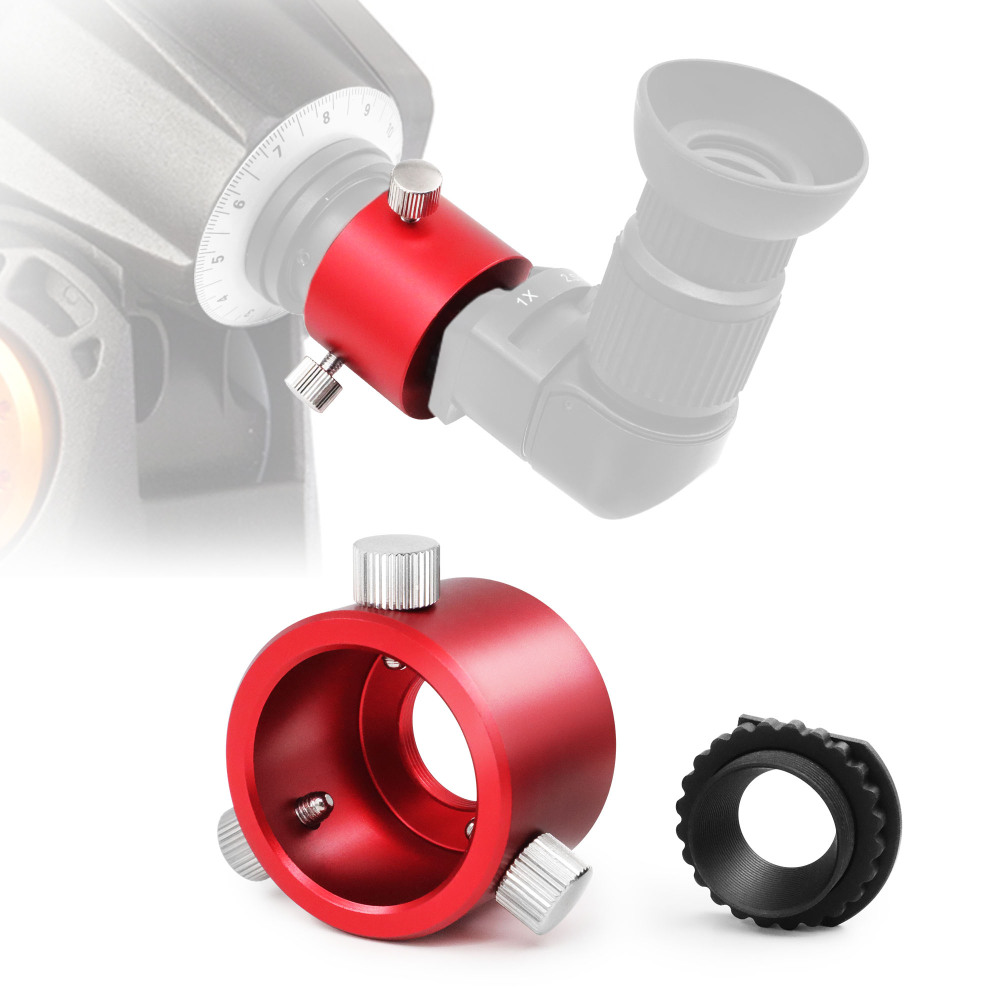

【Matchable with Viewfinder】 Polar scope adapter works extremely well with viewfinder, which can make polar alignment of your equatorial mount easy and comfortable for achieving multiple degree positions to provide a variety of viewing angles without changing its center object.
